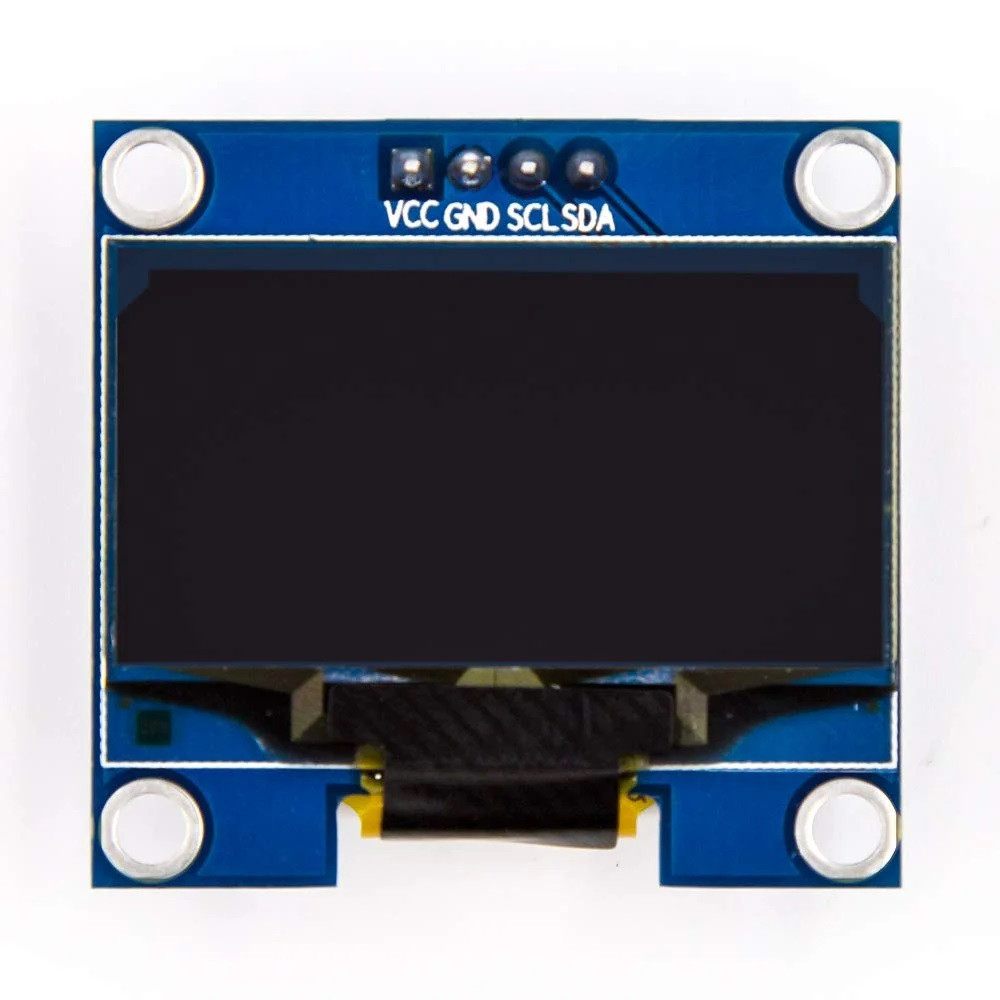

1.3" Inch Blue I2C IIC OLED LCD Module 4pin

Feature:
Resolution: 128*64
Control chip: SSH1106

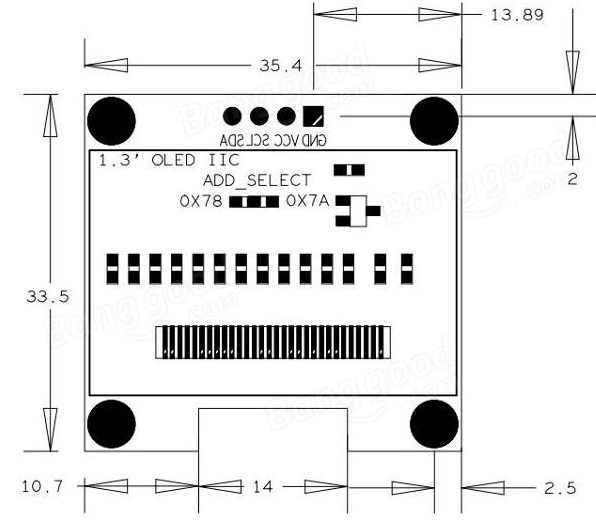

Display area: 29.42 x 14.7mm
Driving voltage: 3.3-5V
Operating temperature: -40 ℃ to 70 ℃
Interface type: IIC/I2C interface

Pin definitions:
1> GND (power ground)
2> VCC (positive power supply)
3> SCL (clock line)
4> SDA (data line)

About control chip SSH1106:
SSG1106 compatible with SSD1306 basic, difference is that SSH1106 control chip RAM space is 132*64, while SSD1306 space is 128*64.
The 1.3-inch OLED 128*64 dot matrix, so in the middle of the screen production took 128 row. When using SSD1306 program point SSH1106 screen, only need to change address to 0x02 row to start.

Package includes:
1 x 1.3 Inch OLED Module
