FT232RL FT232 USB to TTLDownload Cable to Serial

Podrobnosti

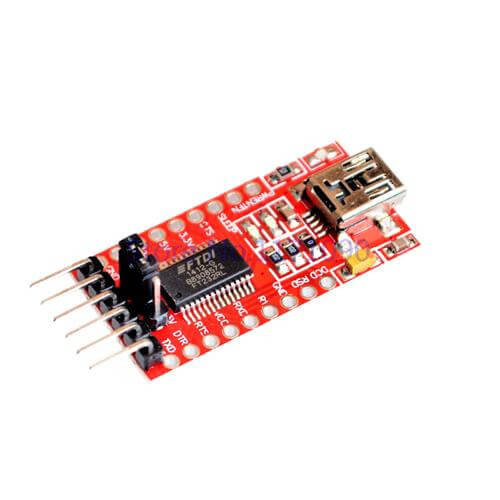

FT232RL 3.3V 5.5V FTDI USB to TTL Serial Adapter Module Arduino Mini Port TE203

Product Description:
Chip: FT232RL
Draw out all signal port of FT232RL chip.
RXD/TXD transceiver communication indicator.
USB power supply, can choose 5V or 3.3V ,set by jumper.
With over current protection, using 500MA self-restore fuse.
Pin definition: DTR,RXD,TX,VCC,CTS,GND
Pitch:2.54mm
Module size:36mm(length)*18mm(width)
Interface: Mini USB

Údajov

Hmotnosť:

4 g/ks
