Krokový motor NEMA 17 OriginálE3D

Name: Krokový motor NEMA 17 OriginálE3D
Brand: E3D
SKU: CE3D02365
Price: 24.35 EUR
Availability: OutOfStock

24,35 €

(19,80 € + 23% DPH)

EAN číslo:

CE3D02365

Technický výkres:

Vypredané

Vlastné zásoby

0 ks

Naše produkty dodávame skladom do 2-4 pracovných dní!

Podrobnosti

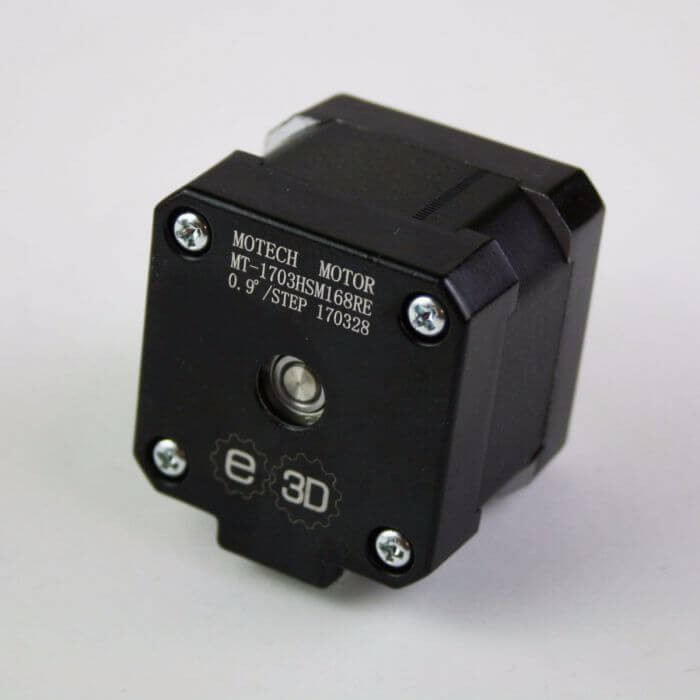

Compact But Powerful motor:
The Compact But Powerful motor is the recommended motor for The E3D Titan and Titan Aero. It’s lighter and shorter than a typical NEMA17 motor - however, it produces almost as much torque. It is suitable for driving geared or direct extruders. It is also suitable for printer axes, provided they are light-duty, eg: a dual lead screw Z-axis that uses 2 motors.

Specification:
Sizes:42mm (width) * 42mm (height) * 40mm (length)
Step angle:0.9 degree
Shaft diameter:5 mm
Phase current:1.68 A
Holding torque:0.35 Nm
