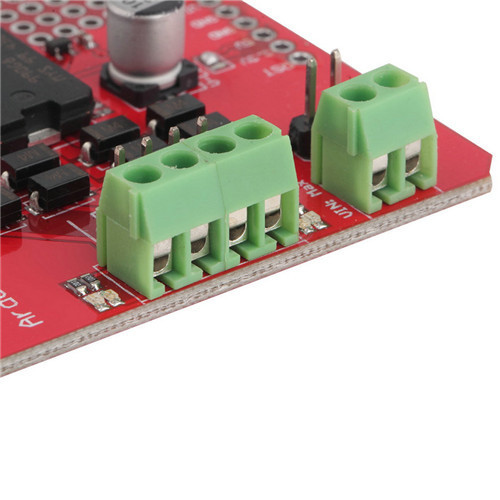

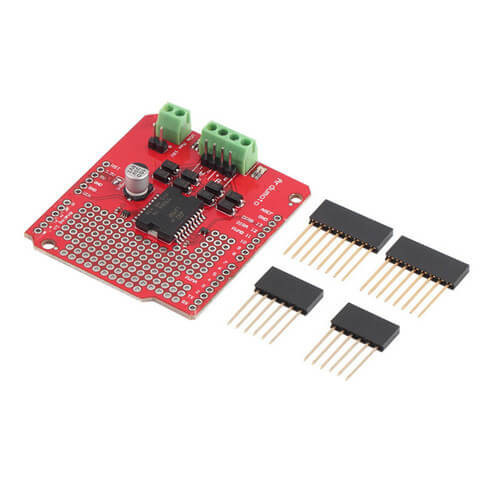

L298P Motor Shield

Podrobnosti

Specification:
Logic Control Voltage£º5V (From Arduino)
Motor Driven Voltage£º6.5~12v(VIN Power Supply),4.8~35V (External Power Source)
2 way motor drive
Logic supply current Iss£ºLess than or equal to 36mA
Motor Driven current Io£ºLess than or equal to 2A
Maximum power consumption£º25W£¨TEqual to 75 Degree Celsius£©
Up to 2A current each way
Pin 4,5,6,7 are used to drive two DC motor
Support PWM speed control
Support PLL advance speed control
Size: 55*55MM (2.2*2.2 in)
