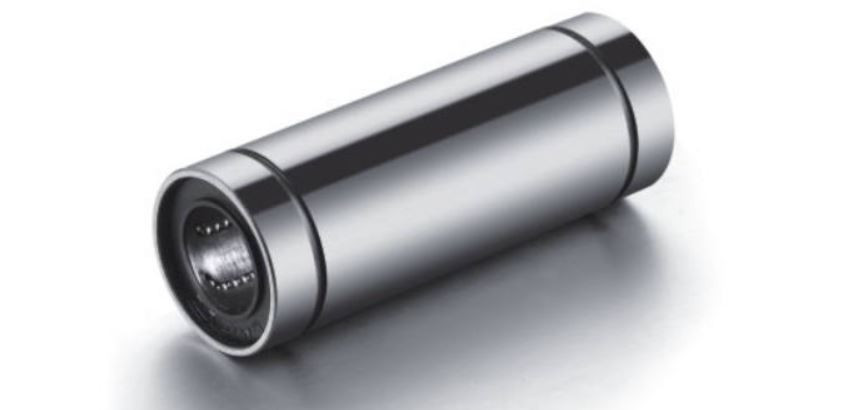

LM20LUU Lineárne guličkové ložisko predĺžené

Podrobnosti

Specification:
Type: LM-L
Flange type: Without flange
Size standard: According to JIS - Japanese standard
Length: Double - Extended

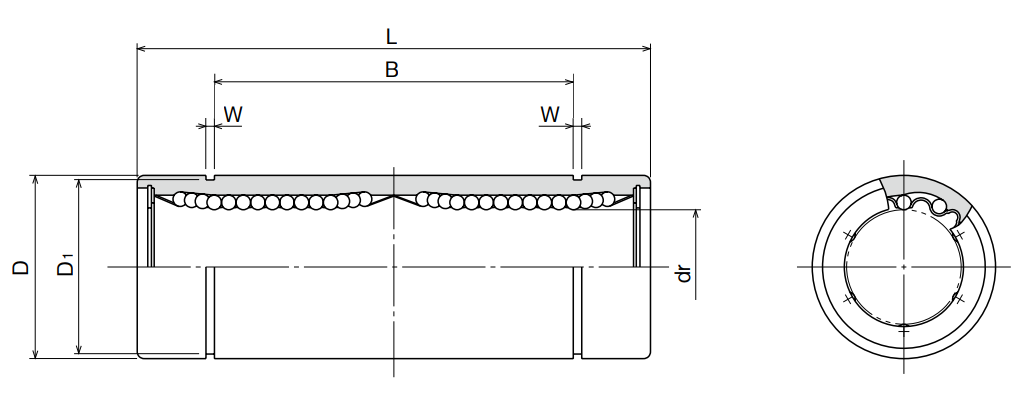

d - Inner diameter: 020 mm
Inner diameter tolerance: 0 / -0.012 mm
D - Outer diameter: 032 mm
Outer diameter tolerance: 0 / -0.019 mm
L - Total length: 080 mm
Total length tolerance: 0 / -0.3 mm
W - Insertion width: 1.6 mm
B - Insertion distance: 57.8 mm
D1 - Insertion diameter: 30.5 mm
Preload: Standard
Layout: Standard
Eccentricity: 0.02 mm
Number of rows of balls: 20 pcs
Application temperature: -20 / +80 ° C
Static load: 02740 N
Dynamic load: 01400 N
Weight: 0.18kg
