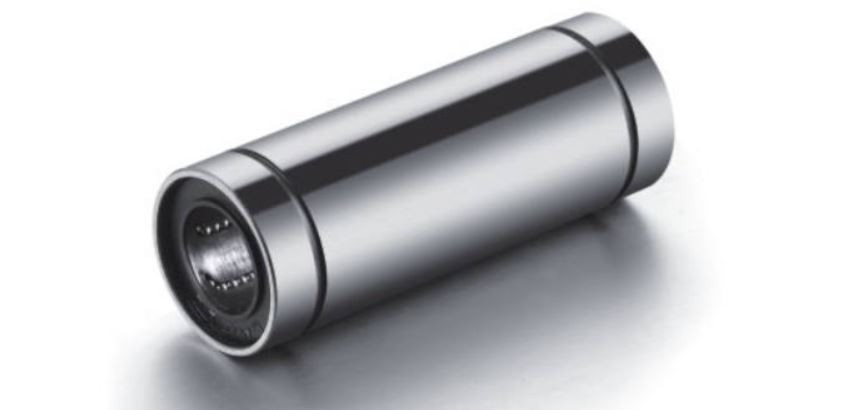

LM4L Lineárne guličkové ložisko predĺžené

Podrobnosti

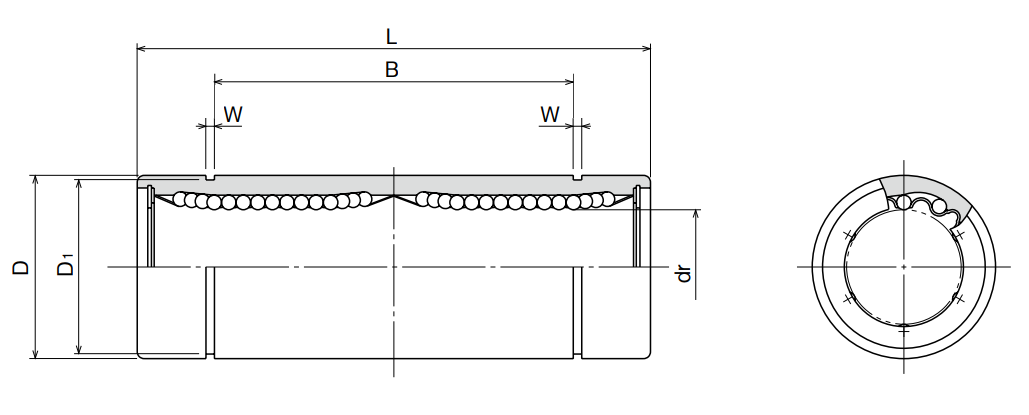

Specification:
Type: LM-L
Flange type: Without flange
Size standard: According to JIS - Japanese standard
Length: Double - Extended
d - Inner diameter: 004 mm
Inner diameter tolerance: 0 / -0.009 mm
D - Outer diameter: 008 mm
Outer diameter tolerance: 0 / -0.011 mm
L - Total length: 023 mm
Total length tolerance: 0 / -0.2 mm
W - Insertion width: - mm
B - Insertion distance: - mm
D1 - Insertion diameter: - mm
Preload: Standard
Layout: Standard
Eccentricity: 0.012 mm
Number of rows of balls: 4 pcs
Application temperature: -20 / +80 ° C
Static load: 00254 N
Dynamic load: 00106 N
Weight: 0.004kg
