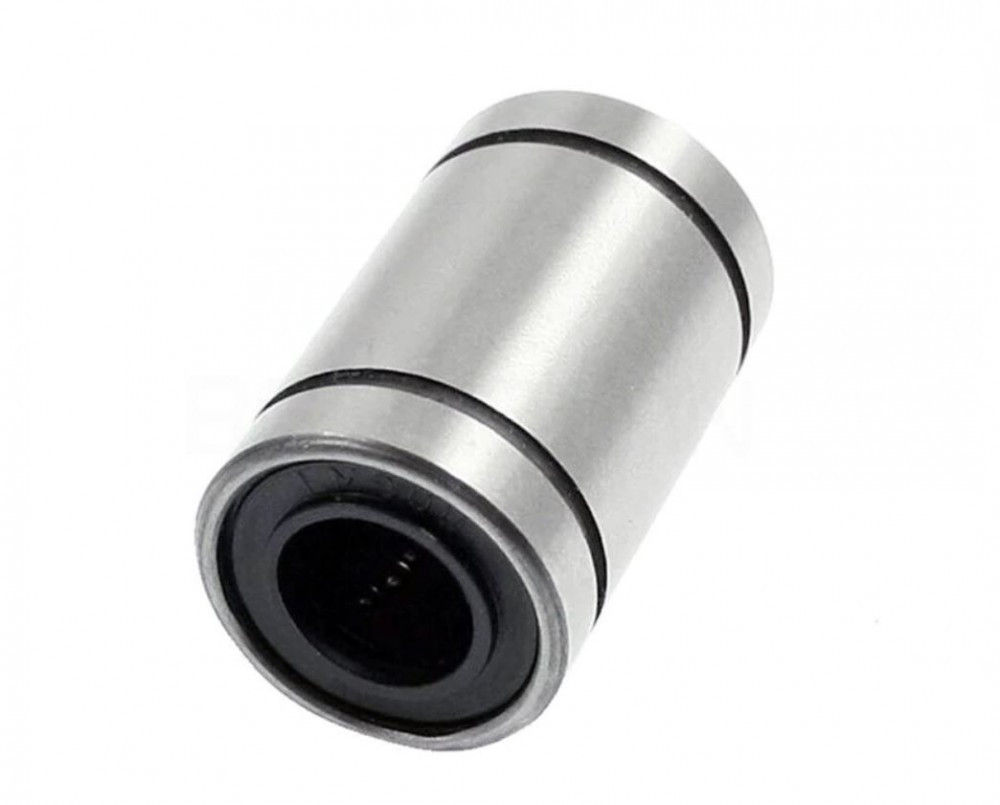

LM8SUU Lineárne guličkové ložisko

Podrobnosti

Specification:
Type: LM
Flange type: Without flange
Size standard: According to JIS - Japanese standard
Length: Simple - Standard

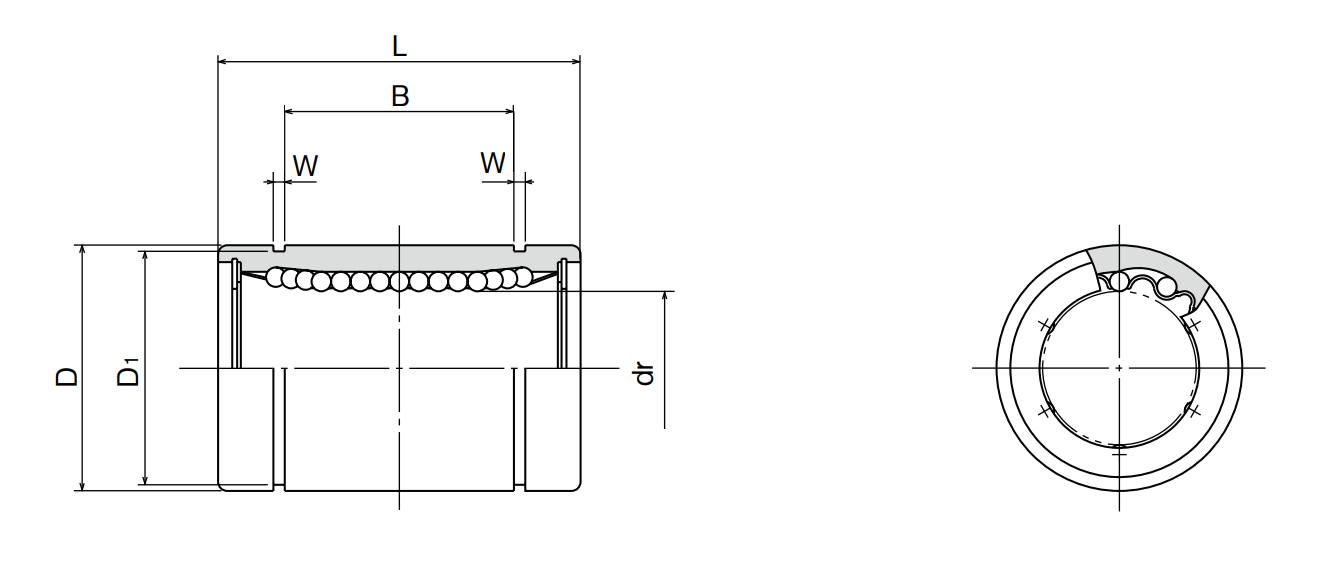

d - Inner diameter: 008 mm
Inner diameter tolerance: 0 / -0.009 mm
D - Outer diameter: 015 mm
Outer diameter tolerance: 0 / -0.011 mm
L - Total length: 017 mm
Total length tolerance: 0 / -0.2 mm
W - Insertion width: 1.1 mm
B - Insertion distance: 9.3 mm
D1 - Insertion diameter: 14.3 mm
Preload: Standard
Layout: Standard
Eccentricity: 0.012 mm
Number of rows of balls: 4 pcs
Application temperature: -20 / +80 ° C
Static load: 00216 N
Dynamic load: 00176 N
Weight: 0.0104kg

Doplnkové výrobky

Údajov

Hmotnosť:

10 g/ks
