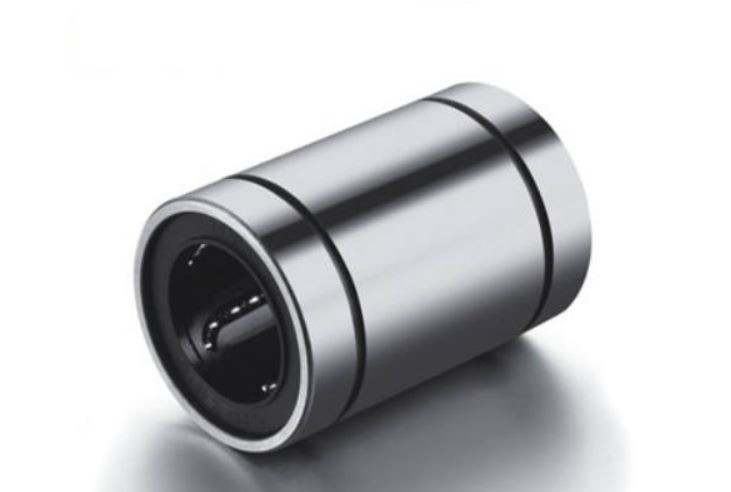

LME10UU Lineárne guličkové ložisko

Podrobnosti

Specification:
Type: LME
Flange type: Without flange
Size standard: According to ISO - European standard
Length: Simple - Standard

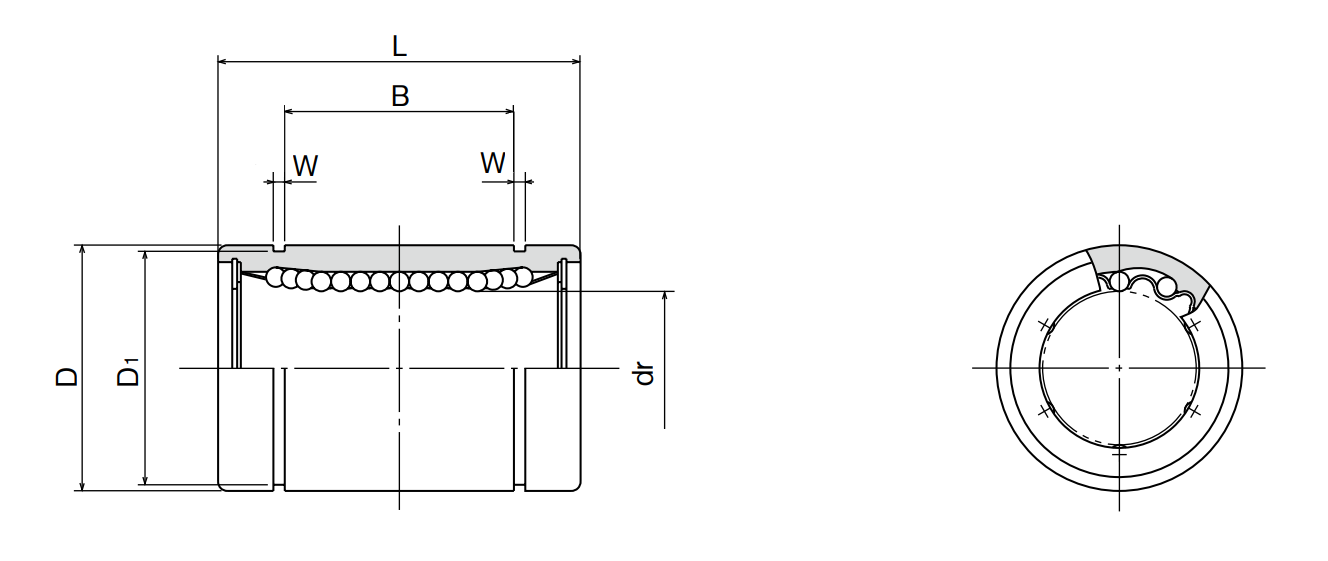

d - Inner diameter: 010 mm
Inner diameter tolerance: + 0.008 / 0 mm
D - Outer diameter: 019 mm
Outer diameter tolerance: 0 / -0.009 mm
L - Total length: 029 mm
Total length tolerance: 0 / -0.2 mm
W - Insertion width: 1.3 mm
B - Insertion distance: 19.4 mm
D1 - Insertion diameter: 18 mm
Preload: Standard
Layout: Standard
Eccentricity: 0.012 mm
Number of rows of balls: 4 pcs
Application temperature: -20 / +80 ° C
Static load: 00549 N
Dynamic load: 00372 N
Weight: 0.0295kg
