(2,13 € + 20% DPH)

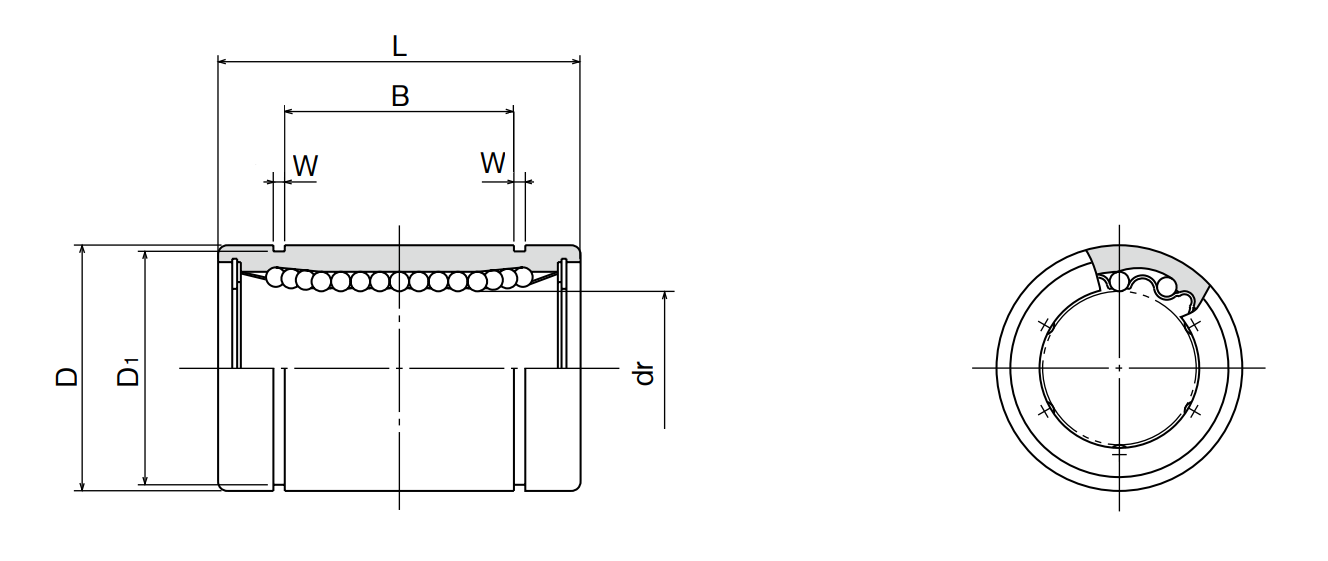

Specification:Type: LMEFlange type: Without flangeSize standard: According to ISO - European standardLength: Simple - Standardd - Inner diameter: 012 mmInner diameter tolerance: + 0.008 / 0 mmD - Outer diameter: 022 mmOuter diameter tolerance: 0 / -0.009 mmL - Total length: 032 mmTotal length tolerance: 0 / -0.2 mmW - Insertion width: 1.3 mmB - Insertion distance: 20.3 mmD1 - Insertion diameter: 21 mmPreload: StandardLayout: StandardEccentricity: 0.012 mmNumber of rows of balls: 4 pcsApplication temperature: -20 / +80 ° CStatic load: 00784 NDynamic load: 00510 NWeight: 0.041kg
