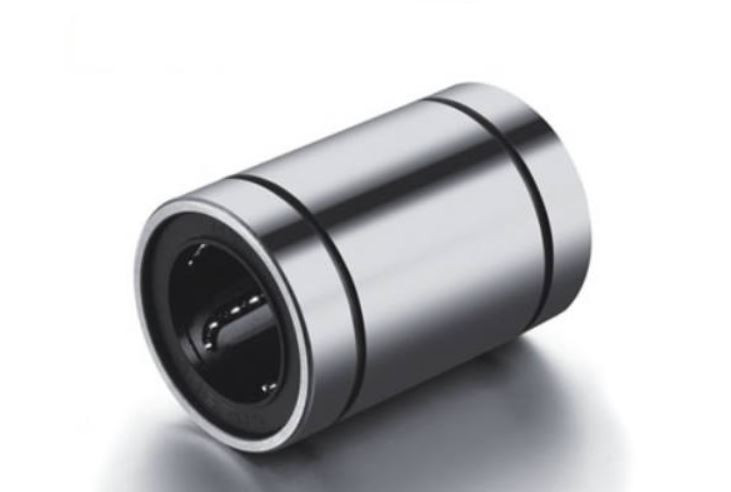

LME8UU Lineárne guličkové ložisko

Podrobnosti

Specification:
Type: LME
Flange type: Without flange
Size standard: According to ISO - European standard
Length: Simple - Standard

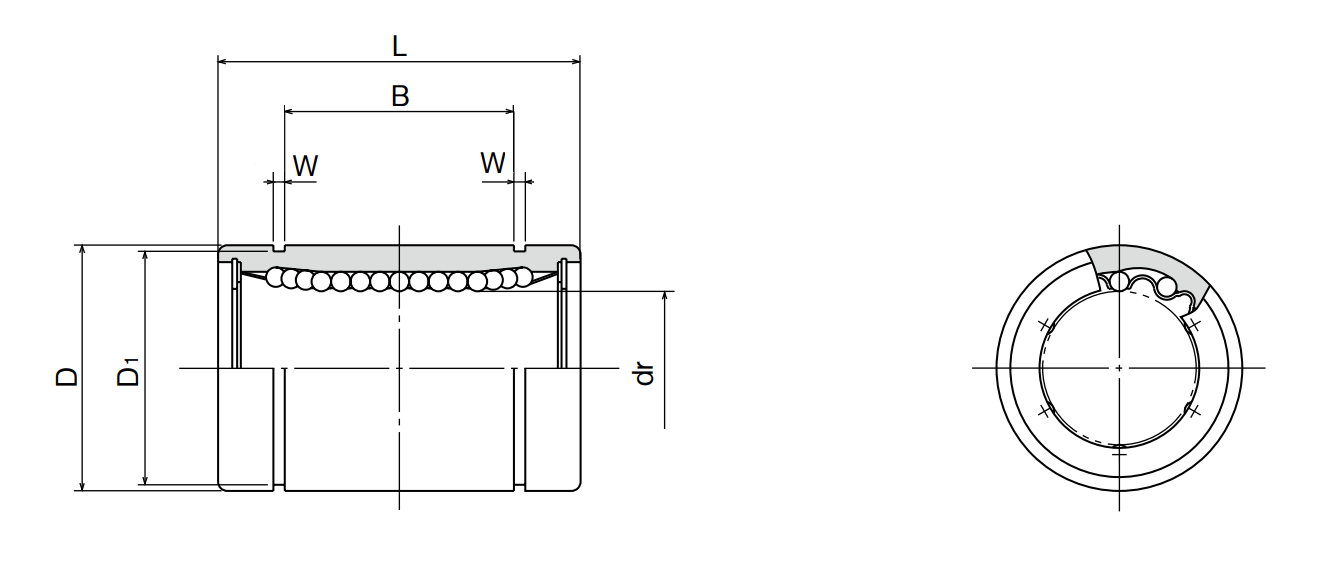

d - Inner diameter: 008 mm
Inner diameter tolerance: + 0.008 / 0 mm
D - Outer diameter: 016 mm
Outer diameter tolerance: 0 / -0.008 mm
L - Total length: 025 mm
Total length tolerance: 0 / -0.2 mm
W - Insertion width: 1.1 mm
B - Insertion distance: 14.3 mm
D1 - Insertion diameter: 15.2 mm
Preload: Standard
Layout: Standard
Eccentricity: 0.012 mm
Number of rows of balls: 4 pcs
Application temperature: -20 / +80 ° C
Static load: 00402 N
Dynamic load: 00265 N
Weight: 0.02kg
