(11,51 € + 20% DPH)

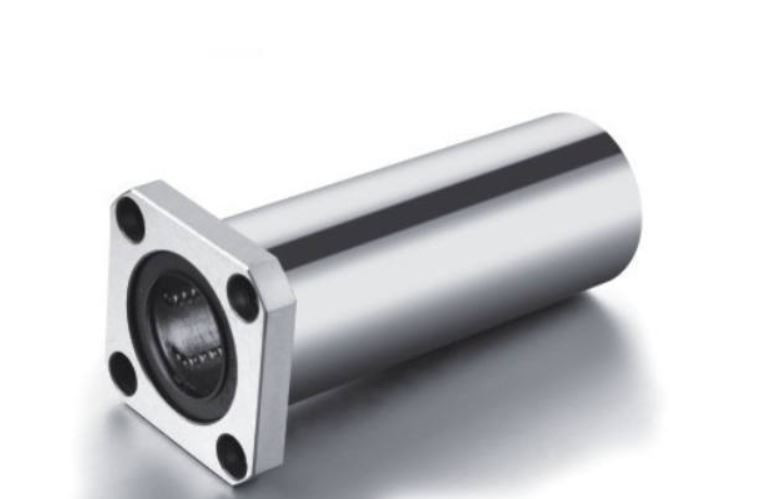

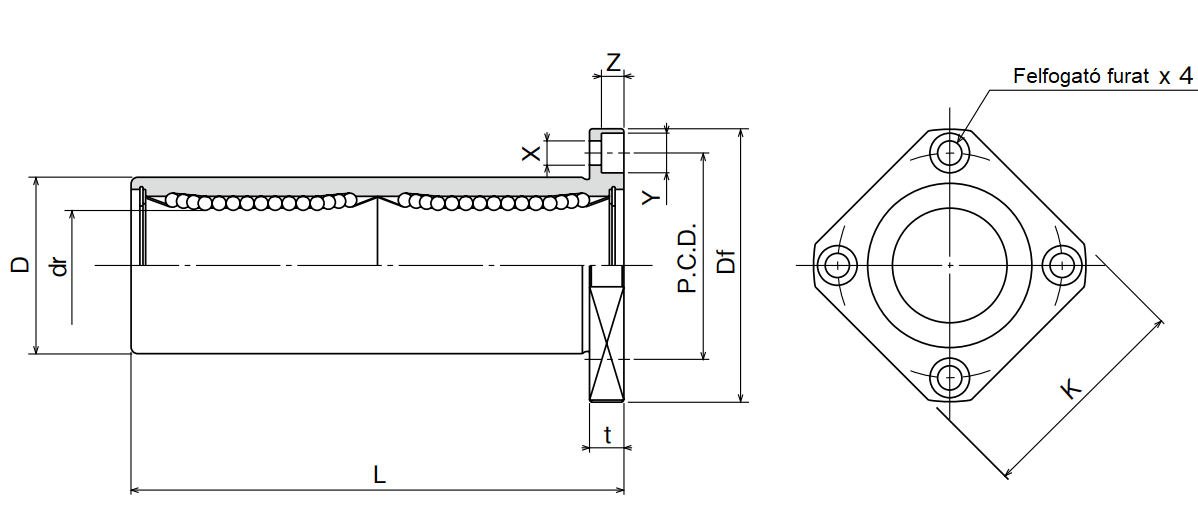

Specification:Type: LMEK-LFlange type: Square flangeSize standard: According to ISO - European standardLength: Double - Extendedd - Inner diameter: 012 mmInner diameter tolerance: + 0.009 / -0.001 mmD - Outer diameter: 022 mmOuter diameter tolerance: 0 / -0.011 mmL - Total length: 061 mmTotal length tolerance: 0 / -0.3 mmDf - Flange diameter: 42mmK - Edge flattening: 32 mmt - Flange thickness: 6 mmPCD - Flange hole spacing: 32 mmReceiving hole: 4.5 x 7.5 x 4.1 mmPreload: StandardLayout: StandardEccentricity: 0.015 mmNumber of rows of balls: 4 pcsApplication temperature: -20 / +80 ° CStatic load: 01570 NDynamic load: 00813 NWeight: 0.09kg
