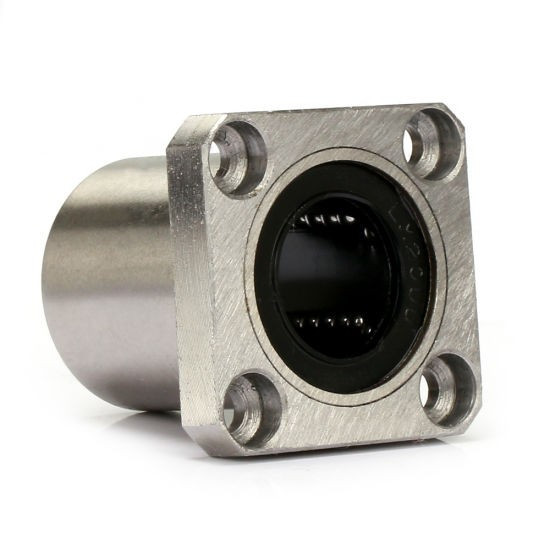

LMEK12UU Lineárne guličkové ložisko s golierom

Podrobnosti

Specification:
Type: LMEK
Flange type: Square flange
Size standard: According to ISO - European standard
Length: Simple - Standard

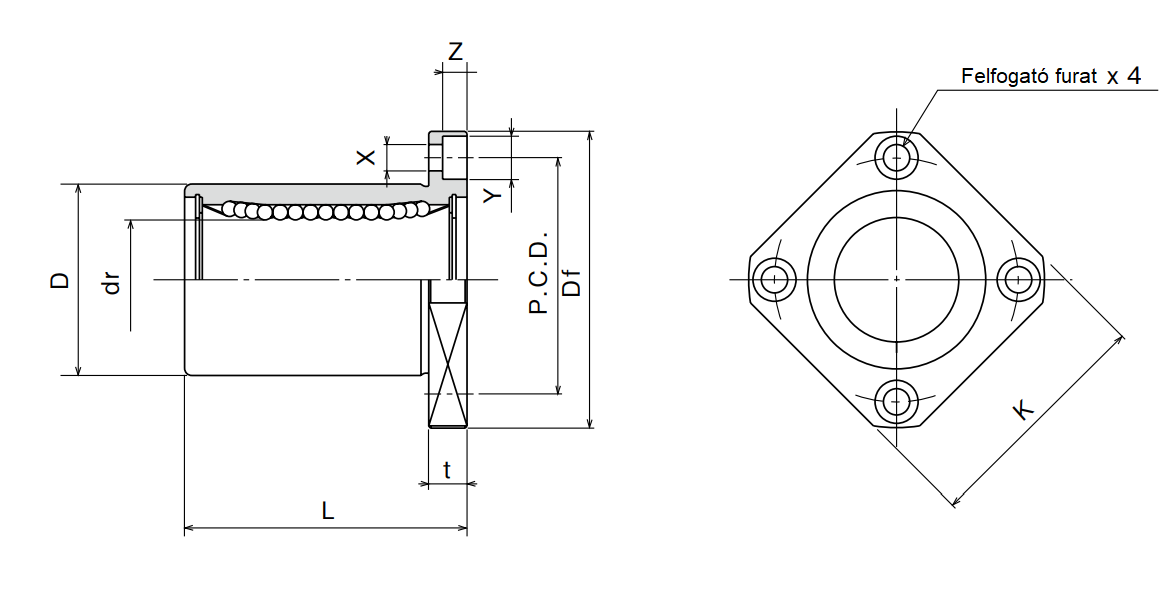

d - Inner diameter: 012 mm
Inner diameter tolerance: + 0.008 / 0 mm
D - Outer diameter: 022 mm
Outer diameter tolerance: 0 / -0.009 mm
L - Total length: 032 mm
Total length tolerance: 0 / -0.2 mm
Df - Flange diameter: 42mm
K - Edge flattening: 32 mm
t - Flange thickness: 6 mm
PCD - Flange hole spacing: 32 mm
Receiving hole: 4.5 x 7.5 x 4.1 mm
Preload: Standard
Layout: Standard
Eccentricity: 0.012 mm
Number of rows of balls: 4 pcs
Application temperature: -20 / +80 ° C
Static load: 00784 N
Dynamic load: 00510 N
Weight: 0.064kg
