(13,34 € + 20% DPH)

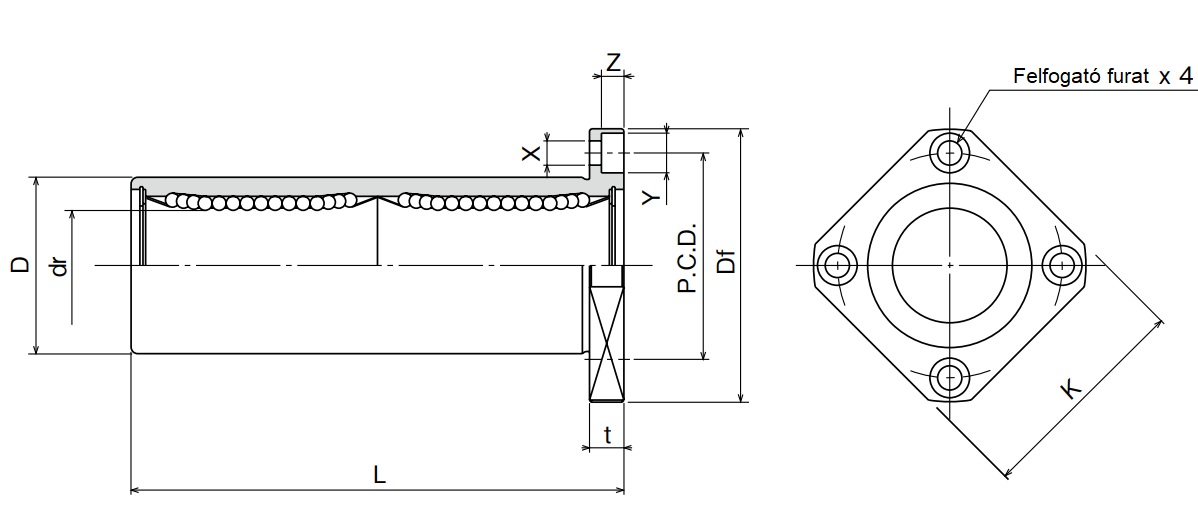

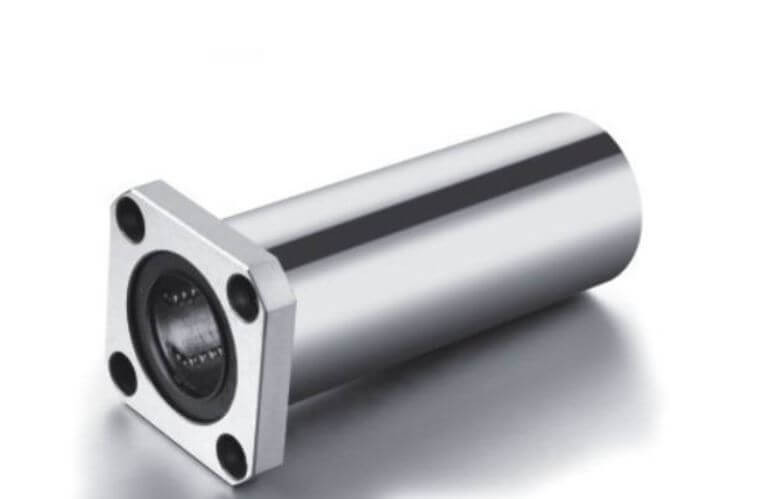

Specification:Type: LMEK-LFlange type: Square flangeSize standard: According to ISO - European standardLength: Double - Extendedd - Inner diameter: 016 mmInner diameter tolerance: + 0.011 / -0.001 mmD - Outer diameter: 026 mmOuter diameter tolerance: 0 / -0.011 mmL - Total length: 068 mmTotal length tolerance: 0 / -0.3 mmDf - Flange diameter: 46mmK - Edge flattening: 35 mmt - Flange thickness: 6 mmPCD - Flange hole spacing: 36 mmReceiving hole: 4.5 x 7.5 x 4.1 mmPreload: StandardLayout: StandardEccentricity: 0.015 mmNumber of rows of balls: 5 pcsApplication temperature: -20 / +80 ° CStatic load: 01780 NDynamic load: 00912 N
