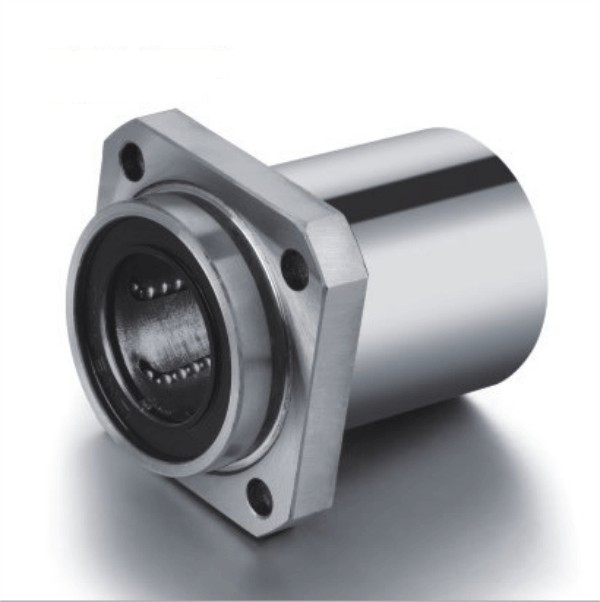

LMKP8UU Lineárne guličkové ložisko s golierom

Podrobnosti

Specification:
Type: LMKP
Flange type: Square flange
Size standard: According to JIS - Japanese standard
Length: Simple - Standard

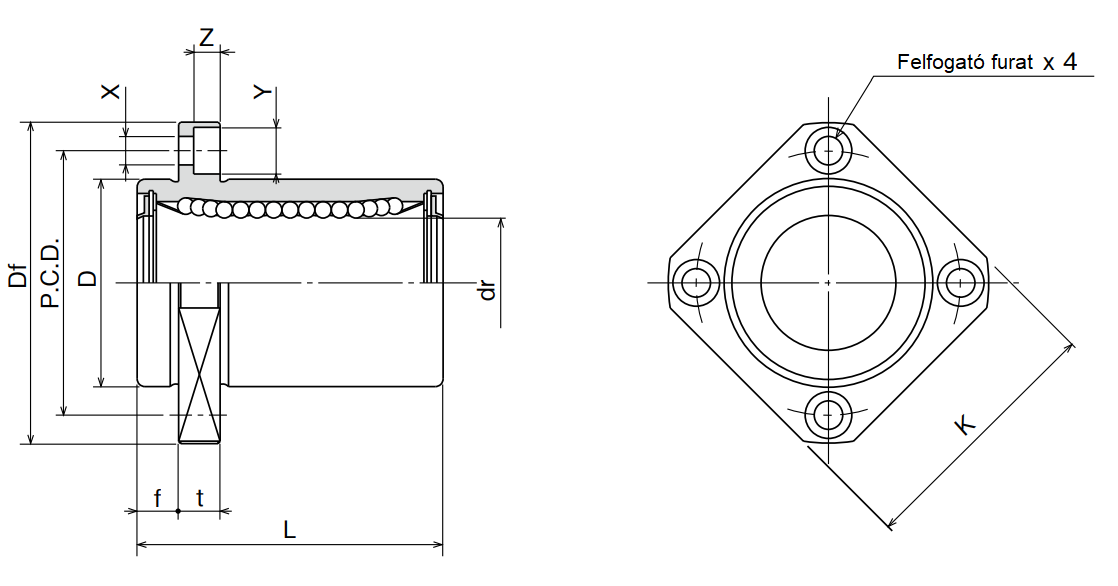

d - Inner diameter: 008 mm
Inner diameter tolerance: 0 / -0.009 mm
D - Outer diameter: 015 mm
Outer diameter tolerance: 0 / -0.013 mm
L - Total length: 024 mm
Total length tolerance: ± 0.3 mm
f - Shoulder length: 5 mm
Df - Flange diameter: 32mm
K - Edge flattening: 25 mm
t - Flange thickness: 5 mm
PCD - Flange hole spacing: 24 mm
Mounting hole: 3.5 x 6 x 3.1 mm
Preload: Standard
Layout: Standard
Eccentricity: 0.012 mm
Number of rows of balls: 4 pcs
Application temperature: -20 / +80 ° C
Static load: 00392 N
Dynamic load: 00274 N
Weight: 0.029kg
