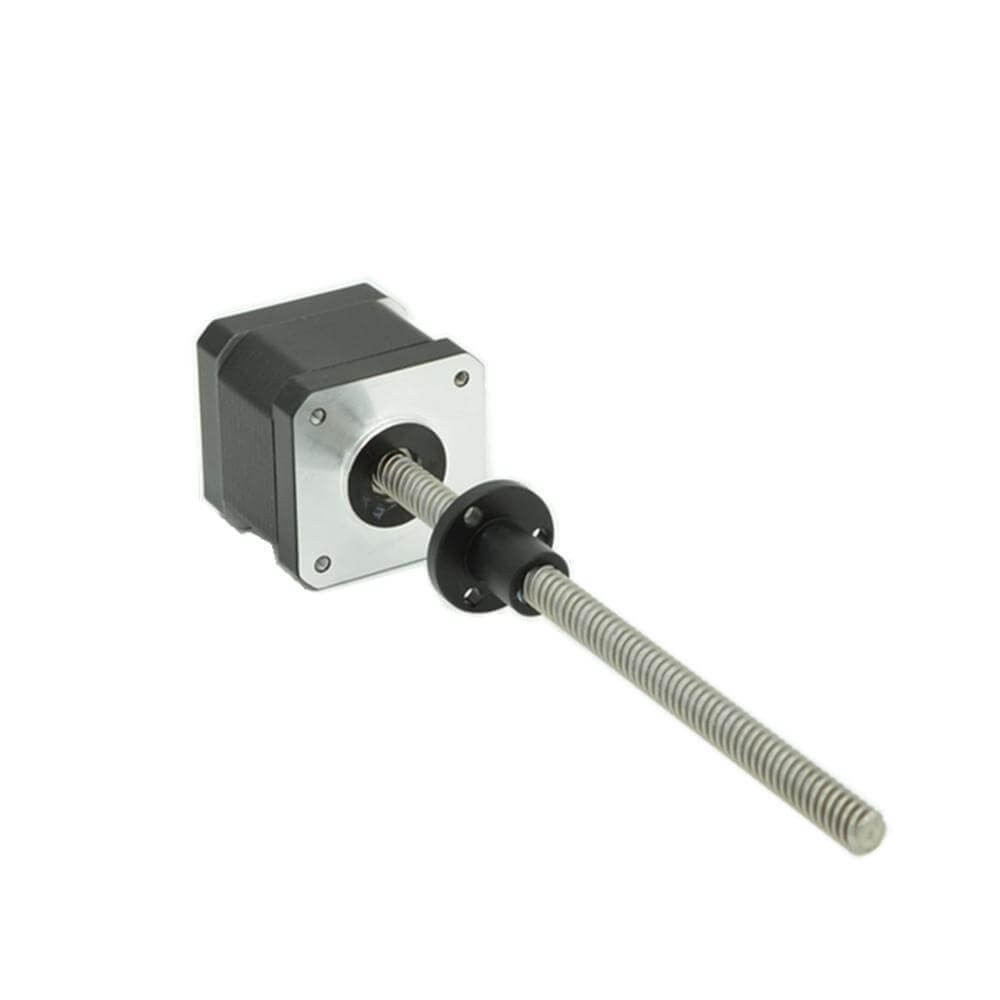

NEMA 17 Threaded Rod, 160mm length Tr8*8 Acme Leadscrew

Name: NEMA 17 Threaded Rod, 160mm length Tr8*8 Acme Leadscrew
Brand: Caxtool
SKU: CHGS00318
Price: 59.72 EUR
Availability: InStock

59,72 €

(49,76 € + 20% DPH)

EAN číslo:

CHGS00318

Dodacia lehota:

2-4 pracovné dni

Vlastné zásoby

2 ks

Naše produkty dodávame skladom do 2-4 pracovných dní!

Podrobnosti

Specification:
Step Angle: 1.8 degree±5%
Rated Current: 1.68A
Phase No.:2
Resistance: 1.65±10%Ω
Insulation resistance :100MOhm(500V DC)
Inductance :3.2±20%mH
Insulation class:B
Holding torque :0.4NM
Driving voltage:24V

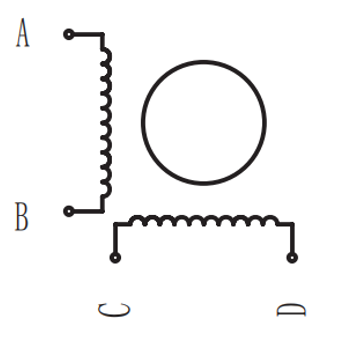

Diagram: Remarks
