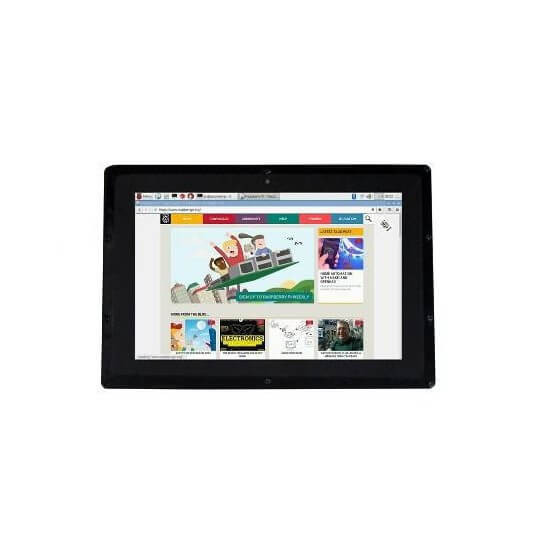

Raspberry Pi 10.1 Inch HDMI LCD Capacitive Screen IPS Screen 1280x800 With Protective Shell
Raspberry Pi 10.1 Inch HDMI LCD Capacitive Screen IPS Screen 1280x800 With Protective Shell
231,03 €

(187,83 € + 23% DPH)

  1. Displej
  1. Elektronické súčiastky
  2. Moduly
  3. Displej

Raspberry Pi 10.1 Inch HDMI LCD Capacitive Screen IPS Screen 1280x800 With Protective Shell

Číslo položky:
EHGS02413
Raspberry Pi 10.1 Inch HDMI LCD Capacitive Screen IPS Screen 1280x800 With Protective Shell
231,03 €

(187,83 € + 23% DPH)

EAN číslo:
EHGS02413
Dodacia lehota:
2-4 pracovné dni
Vlastné zásoby
2 ks
Naše produkty dodávame skladom do 2-4 pracovných dní!
Podrobnosti

Waveshare Raspberry Pi 10.1 Inch HDMI LCD Capacitive Screen IPS Screen 1280x800 With Protective Shell



Description
his is the latest 10.1-inch screen for raspberry pi, under normal circumstances we used to match the raspberry pi, of course, it is compatible with many occasions due to its HDMI interface. Its IPS screen has 1280x800 high resolution, and this is a capacitive screen, which means high sensitivity, supports up to ten-points touch, when it works with raspberry pi, it is not required to driver support, and compatible with many systems, including win10/8/7. To avoid the problem that system is not compatible with display, not only support raspberry pi, it also supports banana pi, BB black. Backlight brightness can be adjusted, it’s conducive to lower power consumption. It comes with a bracket and acrylic shell, to avoid the exposed screen be damaged. Finally need to pay attention to the point: when you want this screen to work together with raspberry, you need to manually set the resolution, you need to edit the config.txt file of TF card root directory to set up.

Features
-IPS raspberry pi screen,1280×800 high resoluti
-Capacitive touch control, supports up to ten-points touch
-When works with Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver freet
-Supports Banana Pi, Banana Pro, comes with Lubuntu, Raspbian images
-Supports BB Black, comes with Angstrom image
-HDMI interface for displaying, USB interface for touch control
-Back light control to lower power consumption
-Working Voltage:DC 5V

Package List
-10.1inch HDMI LCD (B) (with shell) x 1
-Fixed support x 1
-Spare screw
-HDMI connector x 1
-The USB cable type A public port is changed to micro public port x 2
-Power gauge 5V 2.5A USB port x 1
-Data CD x 1
-Power adapter US/EU x 1


Raspberry Pi 10.1 Inch Capacitive Screen LCD Supports HDMI VGA And AV Interface With Protective Housing 1024x600 Resolution



Description
-The LCD and Control Board
-1024×600 high resolution
-Capacitive touch control
-When works with Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
-When work as a computer monitor, supports Windows 10/8.1/8/7/XP, single touch, and driver free
-Supports BB Black, comes with Angstrom image
-Multi video input interfaces: HDMI, VGA, and AV(CVBS)
-Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
-Firmware can be upgraded to support more new features (continually updated)

Note
To use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
-Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
-BB Black: HDMI cable

Package List
-10.1 inch capacitive Touch LCD (D) x 1
-HDMI LCD main control board x 1
-HDMI connector x 1
-The USB cable type A public port is changed to micro public port x 1
-40 PIN FFC line x 1
-10.1 inch screen shell x 1
-Screw package x 1
-Shell bracket x 2
-Power gauge (1)
-Data CD * 1
-Power adapter US/EU x 1
