(3,95 € + 20% DPH)

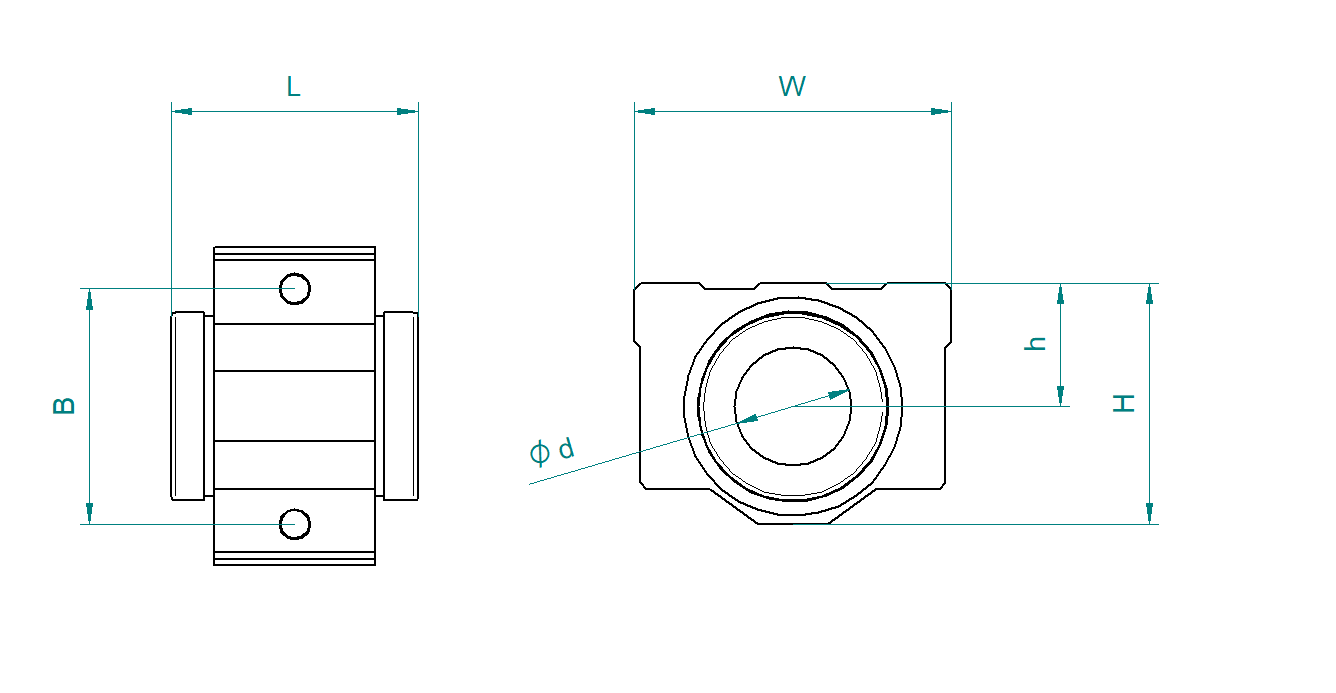

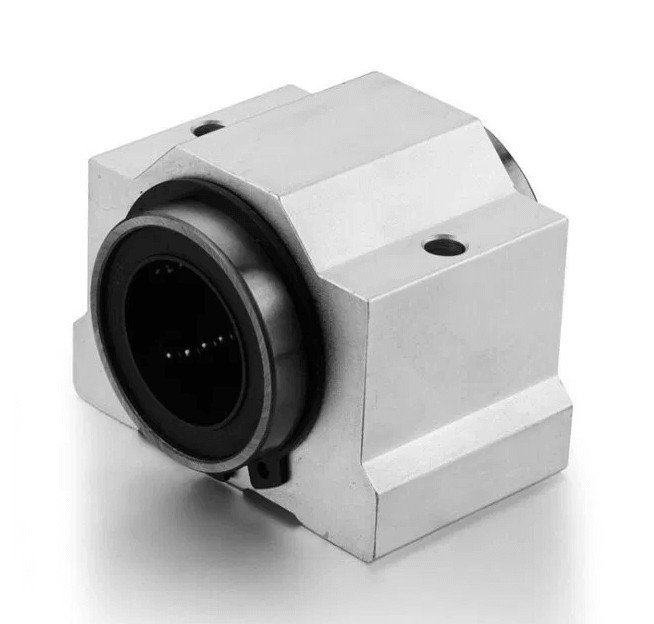

Specification:Type: SC-S - closed housingd - Inner diameter: 10 mmh - Shaft height: 13 mmH - Total height: 026 mmW - Total width: 040 mmL - Total length: 029 mmB - Hole pitch: 028 mmThrough fixing screw: M4Fixing thread from below: M5X12C0 - Static load capacity: 00540NC - Dynamic load capacity: 370NBush type: 1 x LM 10 UUApplicability temperature: -20 / 80°CUnit type: Unit with two arresting holes, single ball bushingDimensional standard: JIS - Japanese standard
