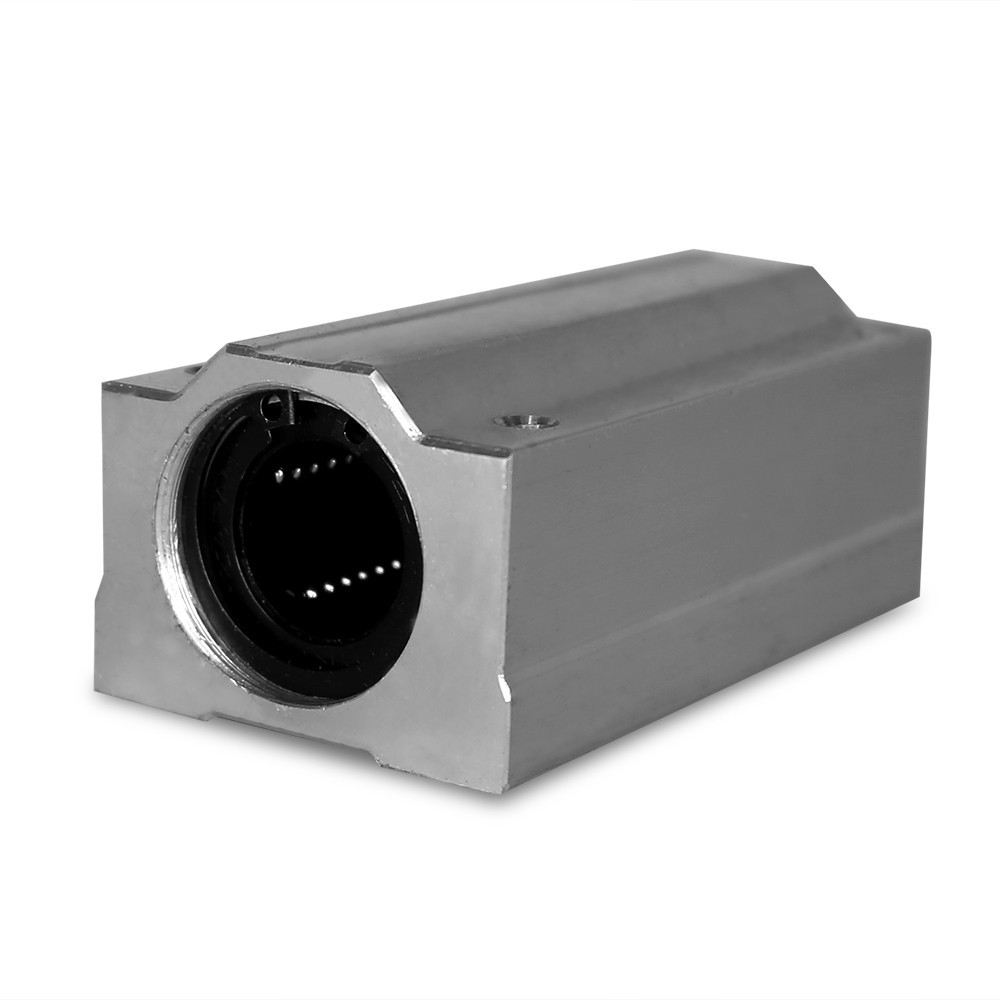

SC12LUU Lineárny posuvný blok

Podrobnosti

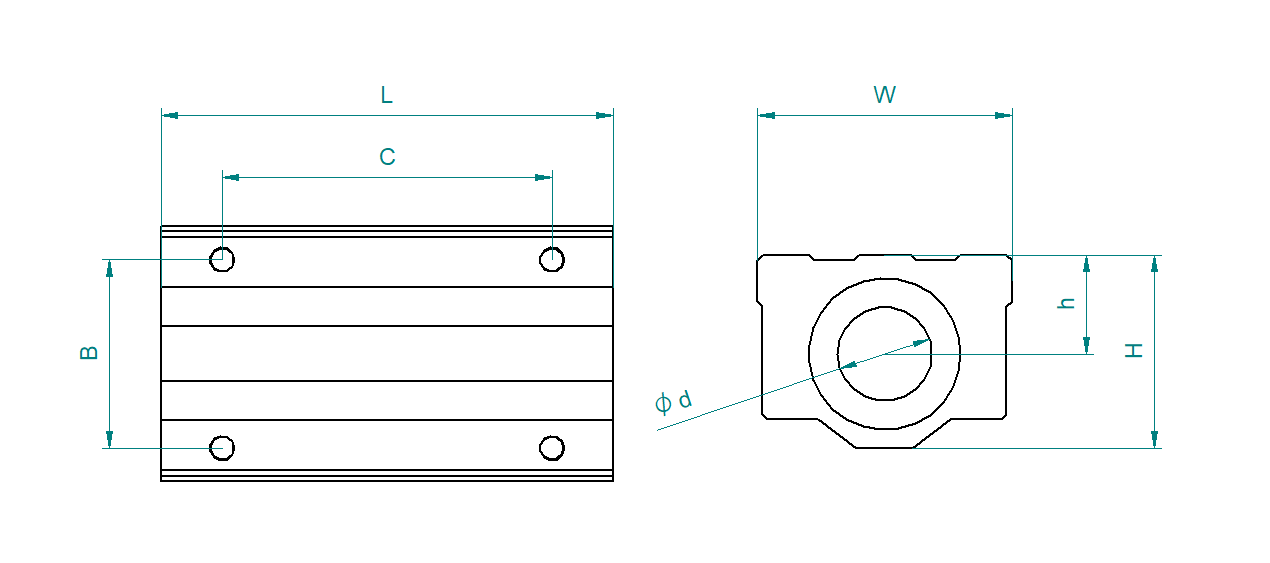

Specification:
Type: SC-L - closed housing
d - Inner diameter: 12 mm
h - Shaft height: 15 mm
H - Total height: 028 mm
W - Total width: 042 mm
L - Total length: 070 mm
B - Hole pitch: 030.5 mm
C - Hole pitch: 050 mm
Through fixing screw: M4
Fixing thread from below: M5X12
C0 - Static load capacity: 01570N
C - Dynamic load capacity: 813N
Bush type: 2 x LM 12 UU
Applicability temperature: -20 / 80°C
Unit type: Four arresting holes, Double ball bushing unit
Dimensional standard: JIS - Japanese standard
