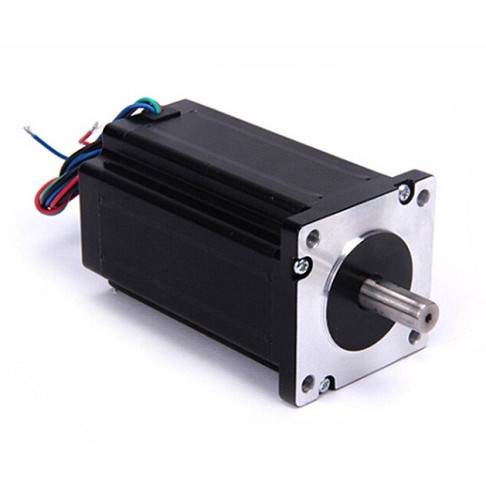

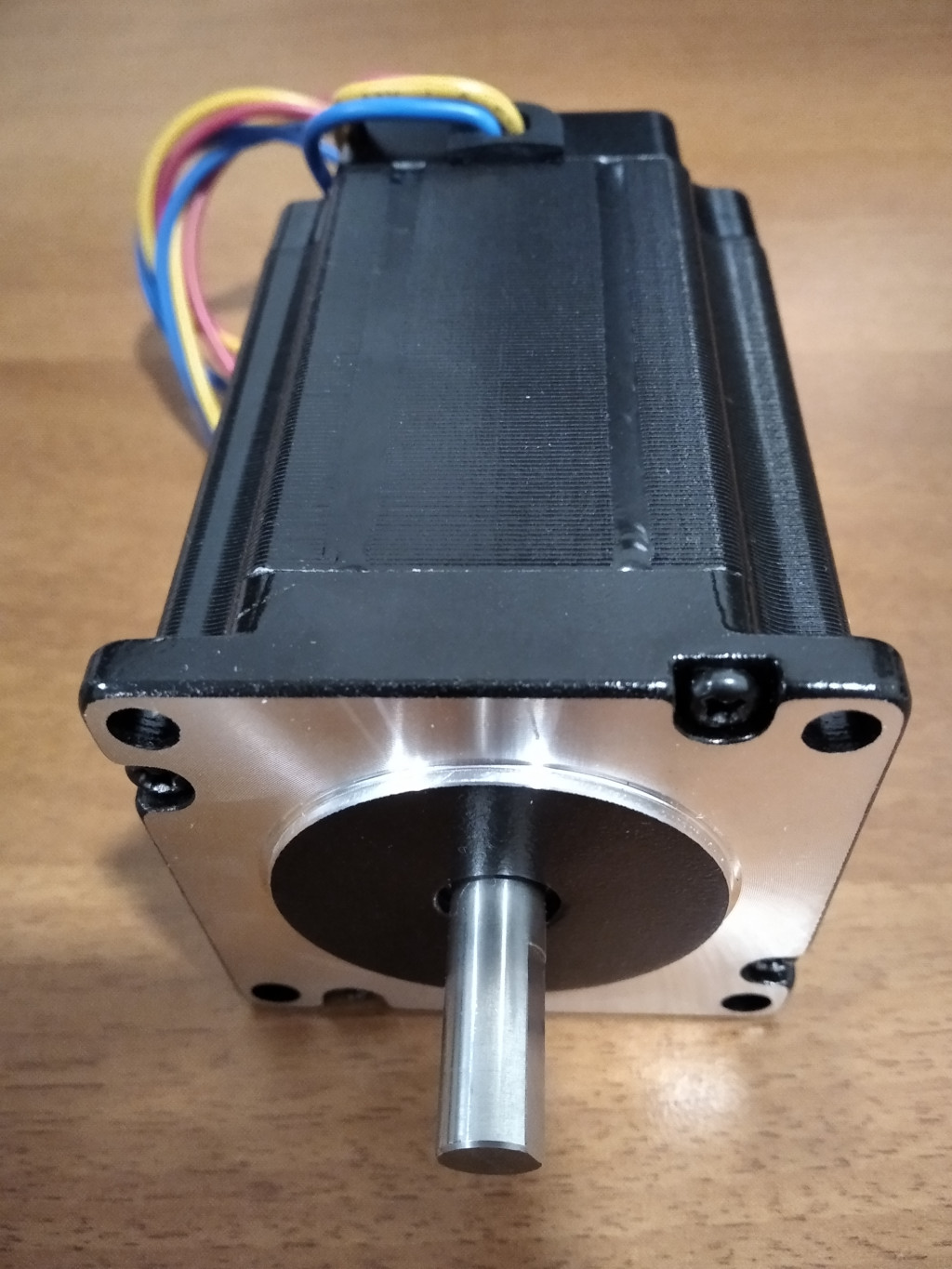

Krokový motor 23HT7358D8P7.5-15

Podrobnosti

Specification:
Dimensions: NEMA23
Phase: 3 Phase
Step angle:1.2°+/- 5% °/step
Holding torque: 1.5 Nm
Phase current: 5.8 A/Phase
Resistance: 0.6 Ω +/- 10% Ω/Phase
Voltage: 3.48V
Phase inductance: 1.8±20% mH/PHASE
Lead Style: AWG18 UL1007 3 wires
Axis: 1
Length: 80mm
Shaft diam: 8mm
Weight: 1.1 kg
