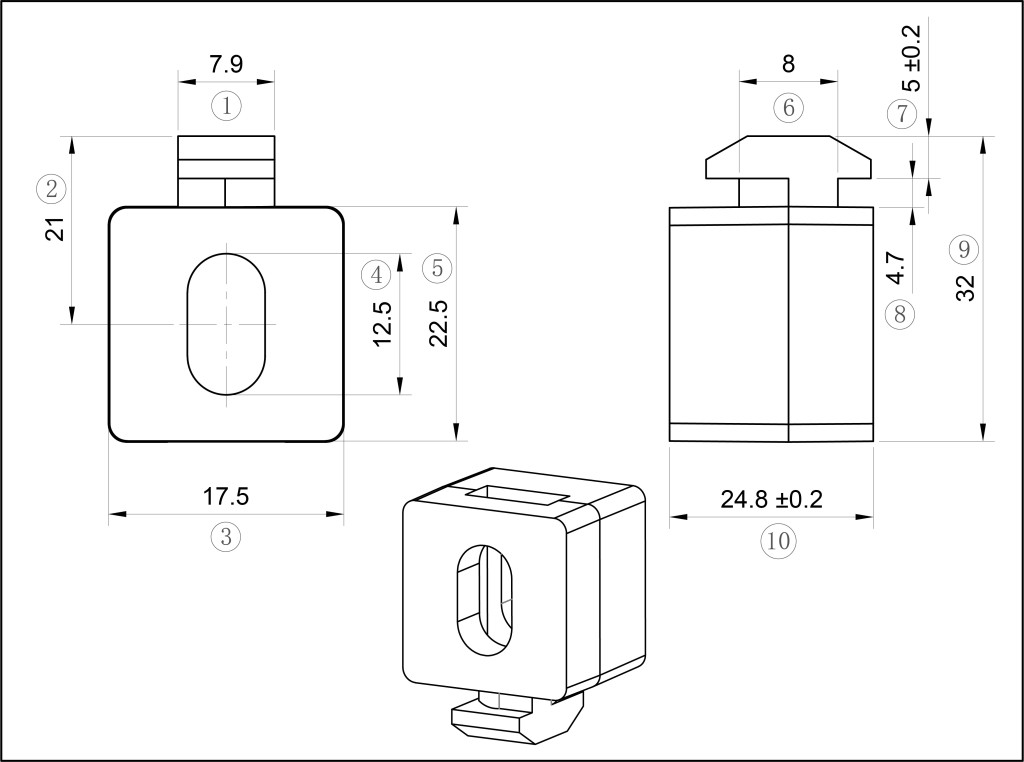

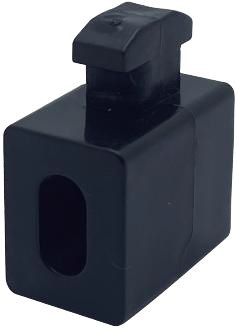

I8 Multiblock to attach panels PVC, black

Podrobnosti

Parmeters	Values
Serie:	I8 (Item compatible, groove 8)
Material:	PVC
Surface:	-
Thread:	M6
Mass (g):	9
Reference:	0.0.026.72, 094080M5
Other names:	Variofix, Uni block, Clamping block
Profiles:	Can be used with all profiles of the class I8 (MRAM01141)

Usage:
The Multiblock is used to fasten various surface elements. The Multiblock can be inserted into the profile groove at any point and is fixed securely in the groove by turning it 90°. Inside the component is a square steel nut into which a screw with an M6 thread can be screwed

Assembly instruction:
