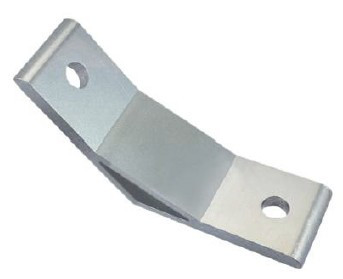

B10 corner bracket 135 degree 45x45 mm, 10mm groove

Podrobnosti

Parameters	Values
Serie:	B10 (Bosch compatible, groove 10)
Material:	Alu alloy
Surface:	Anodized

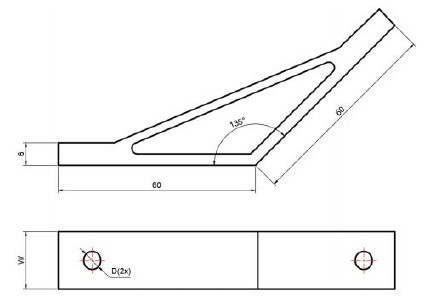

Dimensions (mm):	W = 42 D = 9,5
Mass (g):	75
Reference:	...
Other names:	GUSSET 45X45, Bracket 45x45
Profiles:	Can be used with the profiles B10 45x45, B10 45x90 (MTMS05021, MTMS05022)

Usage:
The angle is used for the stable, unworking 135°connection of two profiles. In other terms, the angle is used to amend the strengthening of profile connections.

Assembly instruction:
This corner bracket can be mounted with T-slot nuts, screws, hammer head nuts. There are many versions in our range.
