B8 corner bracket 45 degree 30x30 mm, 8mm groove

Podrobnosti

Parameters	Values
Serie:	B8 (Bosch compatible, groove 8)
Material:	Alu alloy
Surface:	Plain

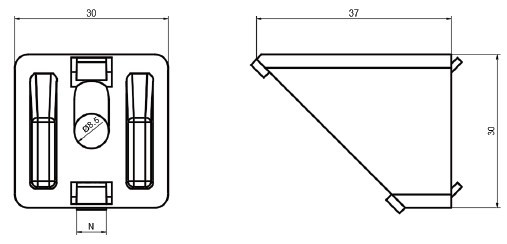

Dimensions (mm):	N = 8
Mass (g):	32,1
Reference:	3842554452
Other names:	CONNECTOR 45° 30X30, GUSSET 45° 30X30
Profiles:	Can be used with the profiles B8 30x30, B8 30x60 (MRAM01107, MTMS05019)

Usage:
The angle is used for the stable, unworking 45°connection of two profiles. In other terms, the angle is used to amend the strengthening of profile connections.

Fastening material:
2x T-nut groove 8 M6, 2x hex. socket head cap screw M6x14, 2x screw S8x25 (MIDE05650).

Assembly instruction:
This corner bracket can be fastened with S8 screws in the center holes and with T-nuts and bolts on the other side. We offer a wide range of variants.
