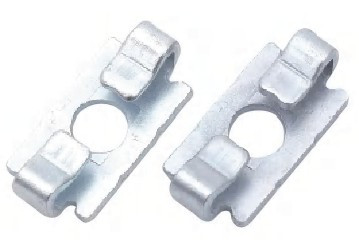

B8 standard connecting plate 8mm groove

Name: B8 standard connecting plate 8mm groove
Brand: Caxtool
SKU: MIDE05910
Price: 0.62 EUR
Availability: OutOfStock

0,62 €

(0,50 € + 23% DPH)

EAN číslo:

MIDE05910

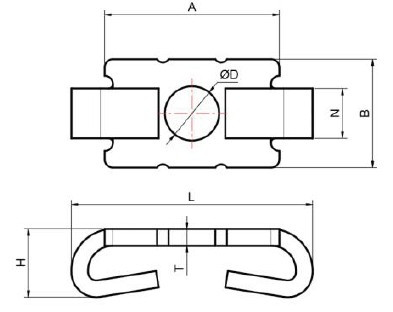

Technický výkres:

Rozmery profilu:

30x30mm

Veľkosť drážky:

8mm

Vypredané

Vlastné zásoby

0 pcs

Naše produkty dodávame skladom do 2-4 pracovných dní!

Podrobnosti

Parameters	Values
Serie:	B8 (Bosch compatible, groove 8)
Material:	Carbon steel
Surface:	Zinc plated
Dimensions (mm):	N = 8, A = 21, B = 7,1 D = 8,7 H = 10, L = 28,5 T =2
Mass (g):	6,9
Reference:	....
Other names:	Standard-fastening
Profiles:	Can be used with the profiles B8 30x30, B8 30x60 (MRAM01107, MTMS05019)

Usage:
The standard connecting plate is used for the stable, 90°connection of two profiles. In other terms, the angle is used to amend the strengthening of profile connections.

Fastening material:
Hex. socket button head screw M8x30.

Assembly instruction:
Centering plates are used for a stable 90° connection with small machining effort. One M8 thread must be cut into the core bore of one profile and a hole with a diameter of 7.0 must be made in the right angled profile. In other way, they ensure a proper fixation of the profiles. Can be built with all profiles of the series 8.
