B10 T-connector plate 45 x 45 mm

Podrobnosti

Parameters	Values
Serie:	B10 (Bosch compatible, groove 10)
Material:	Alu alloy
Surface:	Plain
Dimensions (mm):	A = 45, N = 10 D1 = 20, D2 = 12,5 d1 = 6,5 d2 = 11, T = 14,5 H = 1,5
Mass (g):	55
Reference:	3842520802
Other names:	T connector
Profiles:	Can be used with the profiles B10 45x45 (MTMS05021)

Usage:
The T-connector is used for the stable, unworking 90°connection of two profiles. In other terms, the T-connector is used to amend the strengthening of profile connections.

Fastening material:
2 x Hex. socket head cap screw M6x20. 1x S12x30, 2x T-nut groove 10 M6,

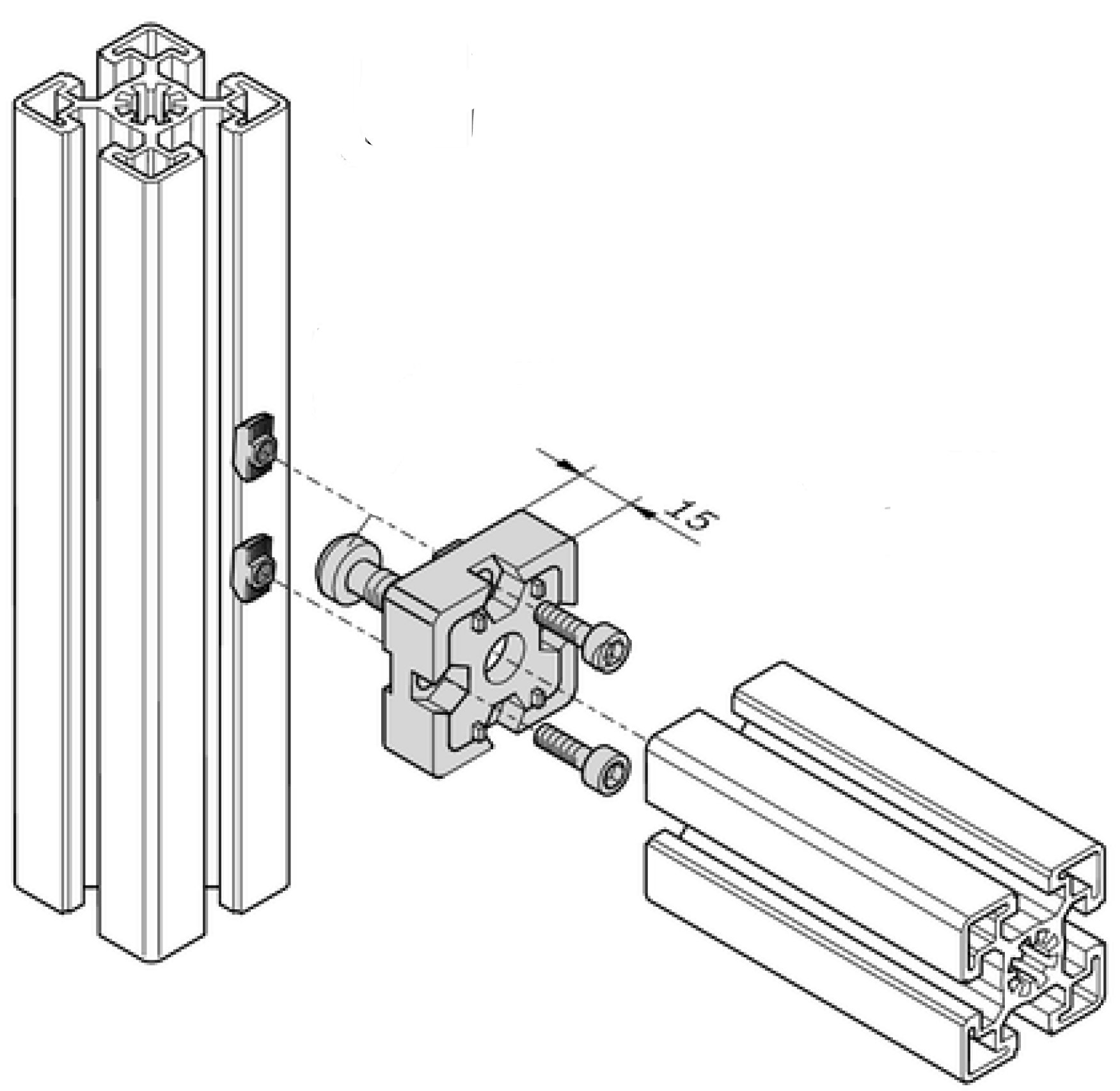

Assembly instruction:
These T-connector plates are used for a stable 90° connection with small machining effort. One M12 thread must be cut into the core bore of one profile and fix the plate to the profile. Put the T-nuts in the other profile and connect the plate fixed to profile on the right place with screws. Can be built with profile of the series 10 40x40.
