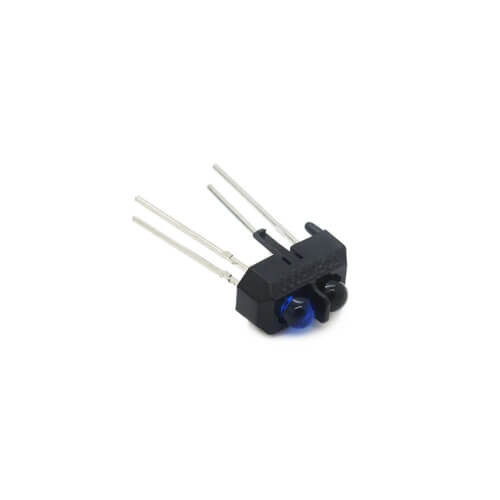

TCRT5000 Reflective IR sensor photoelectric switch

Podrobnosti

Plastic polycarbonate housing construction which prevents crosstalk.
Limit switch foe mechanical motions in VCR.
General purpose - wherever the space is limited.
Sensing Distance: 12mm.
Operating Wavelength: 950 mm.
Sensing Method: Reflective.
Reverse Voltage: 5V.
Forward Current: 60mA.
Forward Surge Current: 3A.
Emitter Power Dissipation: 100mW.
Collector Emitter Voltage: 70V .
Emitter Collector Voltage: 5V.
Collector Current: 100mA.
Detector Power Dissipation: 100mW.
Sensor Total Power Dissipation: 200mW.
Operating Temperature: -25C ~ +85C.
