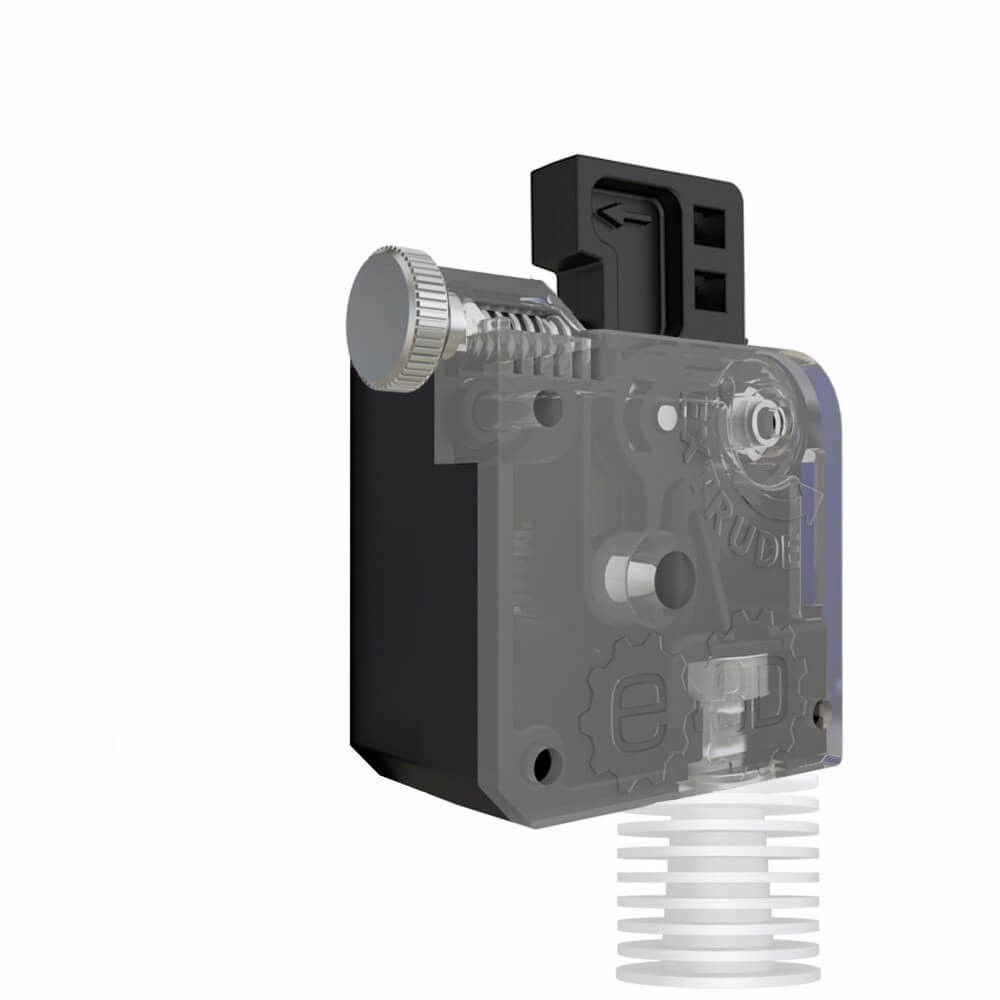

Titan extruder Originál E3D

Performance, power, push. Titan brings high performance, lightweight extrusion. All the benefits of geared extrusion in a lightweight, punchy little package. Titan can be mounted on most RepRap 3D printers to improve extrusion and is the recommended extruder for all our HotEnds. For a full Motion System, you'll need 2 x 1.75mm standard bowden Titan's with motors, plus 2 mirrored versions.

Performance:
By using a 3:1 gearing ratio, precision milled hobbs, and an adjustable idler lever, Titan is a powerful extruder whilst also being lightweight and compact.

Power:
The 3:1 gear ratio means you’re able to use lighter motors as you’ll need less torque for the same filament pushing force - so direct drive setups have a lighter moving carriage, and bowden setups become powerful, reliable printers when combined with an E3D V6 HotEnd.

Versatile:
Titan works well for all configurations ,bowden, direct, 1.75mm and 2.85mm. To switch between filament diameters, all that’s required is to replace the filament guide and the bowden adaptor/ HotEnd.

Speed:
Extruders with high gear ratios often fail with rapid retracts and struggle with keeping up with the Volcano heater block. Titan’s balanced gearing ratio of 3:1 means that you can cope with fast extrusion situations like Volcano and the lightweight gear-set gives snappy retractions.

Resolution:
Direct drive extruders can have issues with ‘pulsing’ flow due to the lower resolution of the gearing and hobb teeth, this can result in a wavy surface finish, becoming particularly prevalent when printing with low layer heights. Using a 3:1 gearing ratio triples the resolution of the system, allowing smoother printing at the lowest of layer heights, using the smallest of nozzles.

Key features:
3:1 gearing ratio
Individually cut, sharp hobb teeth
Direct or bowden
Standard or mirrored
Groove mount slot

Kit includes:
1 x Titan body standard or mirrored
1 x Titan Cover standard or mirrored
1 x Idler lever standard or mirrored
1 x Filament Guide 1.75 or 2.85, standard or mirrored
1 x Steel Pinion Gear
1 x Hobb drive
1 x PTFE tubing 100mm
1 x 1.5mm Hex Wrench
1 x 2mm Hex Wrench
1 x 2.5mm Hex Wrench
3 x M3 x 30 Screws
1 x M3 x 8 Screw
1 x M4 thumbscrew
1 x M4x10 button head screw
1 x M4 Nut
1 x Idler spring
1 x M3 grub screw
1 x Shake-proof washer
