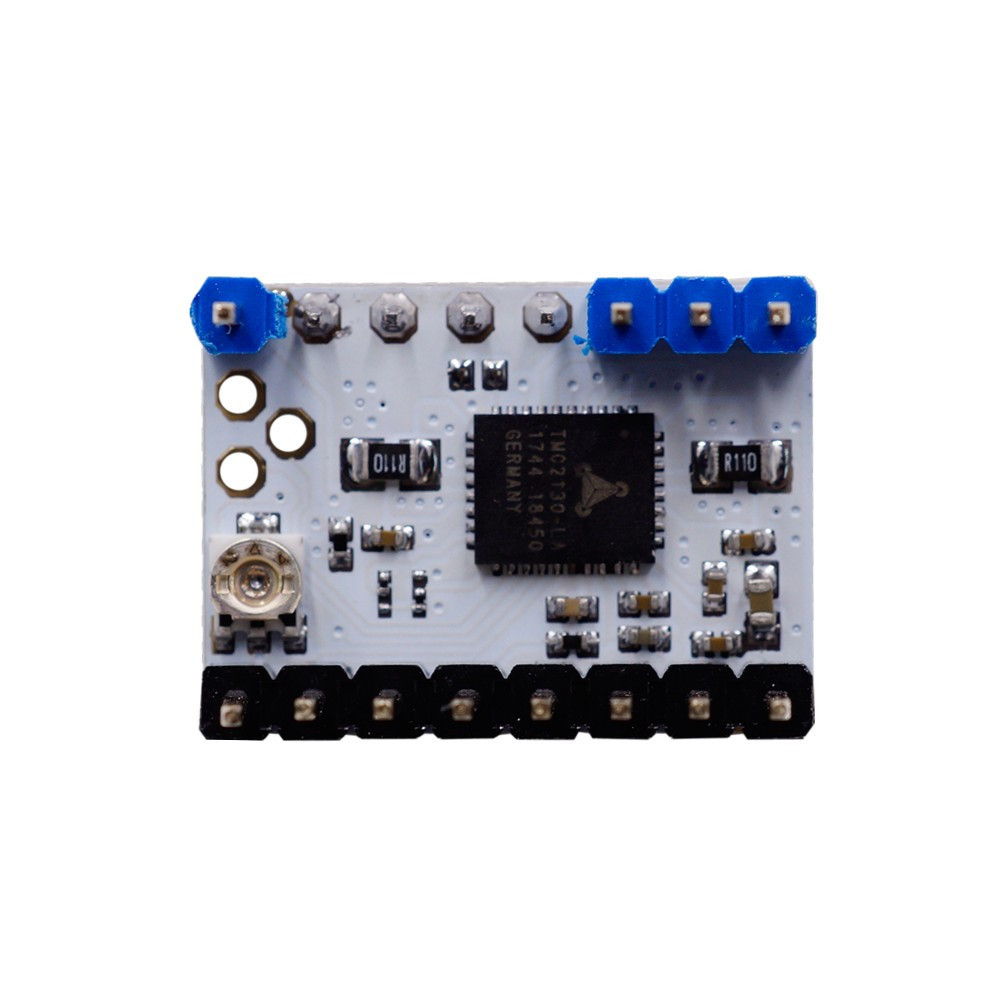

TMC2130 v1.1 driver pre krokové motory

Podrobnosti

1. 1.2A two-phase stepper motor single-phase current (peak 2.5A); adjustable motor operating current.
2. Only support SPI interface control.
3. Motor input voltage range: 4.75 ~ 46V
4. Logical interface input voltage: 3 ~ 5V
5. 256 subdivision.
6. Maximum efficiency and optimum motor torque operation without noise.
7. High-precision sensorless motor load detection.
8. Reduce energy consumption by 75%.
9. High load drive with no step out.

Package Included:

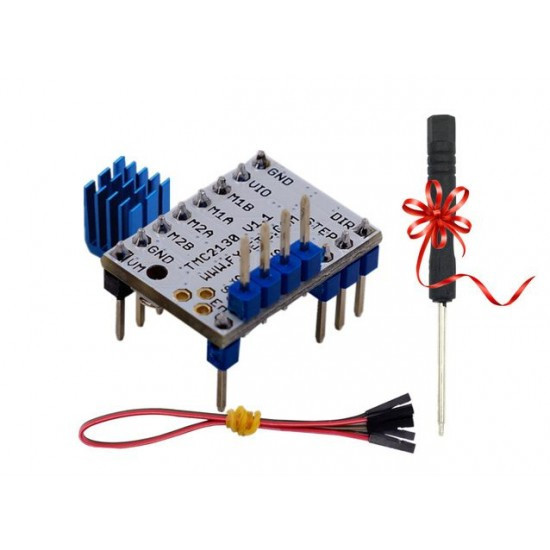

1× TMC2130 V1.1 Stepper Motor Driver Module
1×Heat Sink
1×Screwdriver
1x 4pin cable
