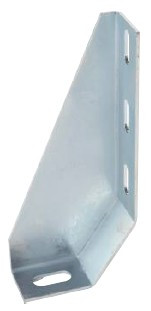

B10 Floor bracket, rigth type,zinc plated

Podrobnosti

Parameters	Values
Serie:	B10 (Bosch compatible, groove 10)
Material:	Carbon steel
Surface:	Zinc plated
Mass (g):	407
Reference:	3842146848
Other names:	FOUNDATION BRACKET
Profiles:	Can be used with the profiles B10 40x40, B10 45x45, so on (MRAM01090, MTMS05021, MTMS05022)

Usage:
Floor bracket for securing frames to the floor. The drilled hole for the floor dowel can be made without removing the foundation bracket.

Fastening material:
Flange nut M8 (MMEK04849), Floor dowel, T-head bolt M8x20 (MIDE04758).

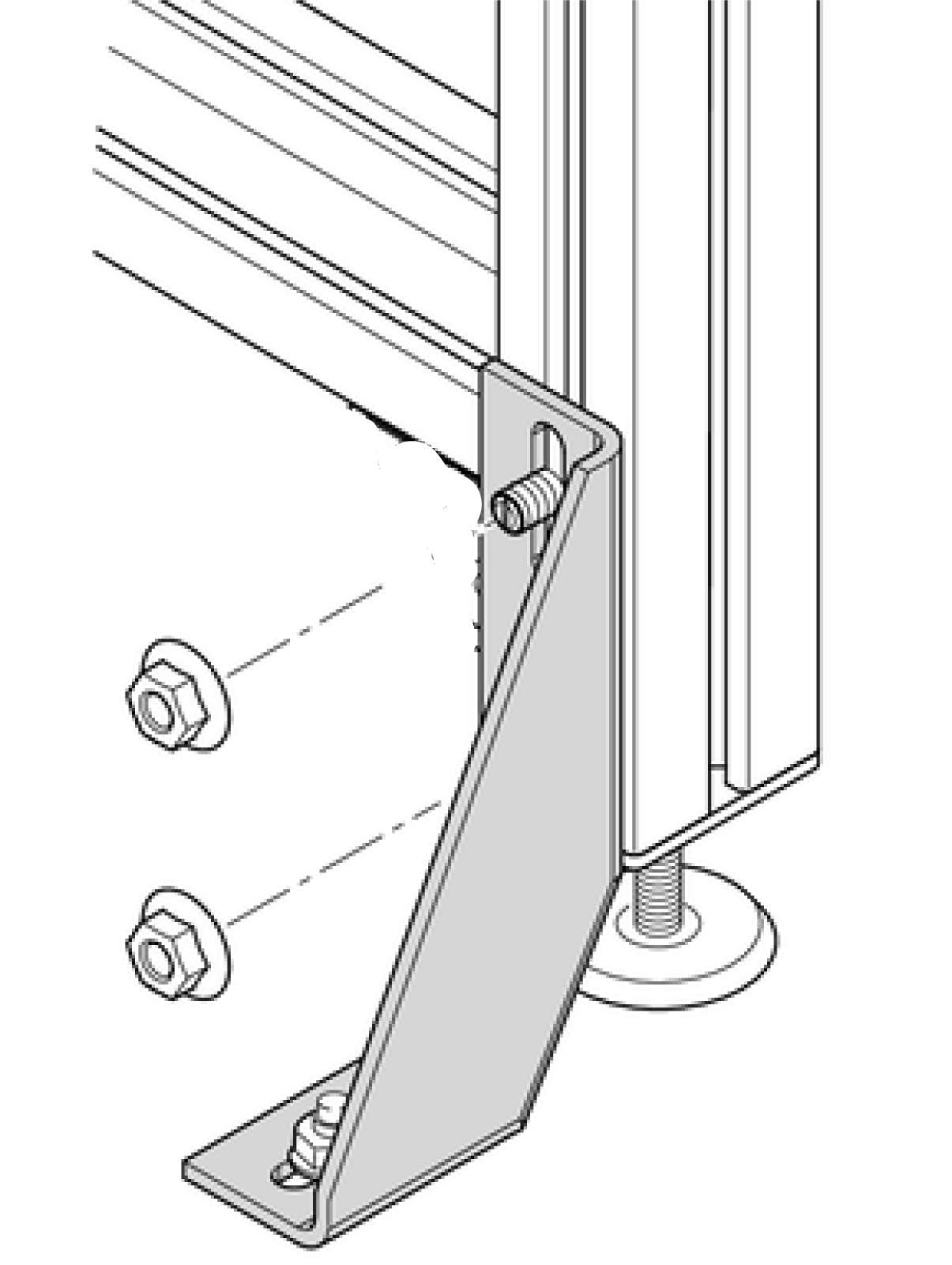

Assembly instruction:
Attach the floor bracket to the profile and then to the ground.
