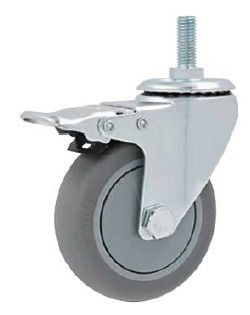

Swivel fixed screw Caster with total lock 100x32 mm, 300kg/4set, M12, Zinc plated

Podrobnosti

Parameters	Values
Serie:	B10 (Bosch compatible, groove 10)
Material:	Carbon steel and Thermoplastic rubber
Surface:	Zinc plated

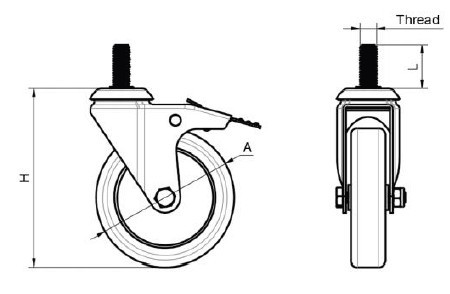

Dimensions (mm):	A = 4"(100*32), H = 131, Thread = M12, L = 25
Load (kg/4pcs):	360kg
Mass (g):	720
Reference:	3842541228
Other names:	CASTER WHEEL
Profiles:	Can be used with the profiles B10 40x40, B10 45x45, so on (MRAM01090, MTMS05021, MTMS05022)

Usage:
Versatile range of uses. Wheels with excellent running properties. Especially gentle on floors

Fastening material:
Most of cases isn't required.

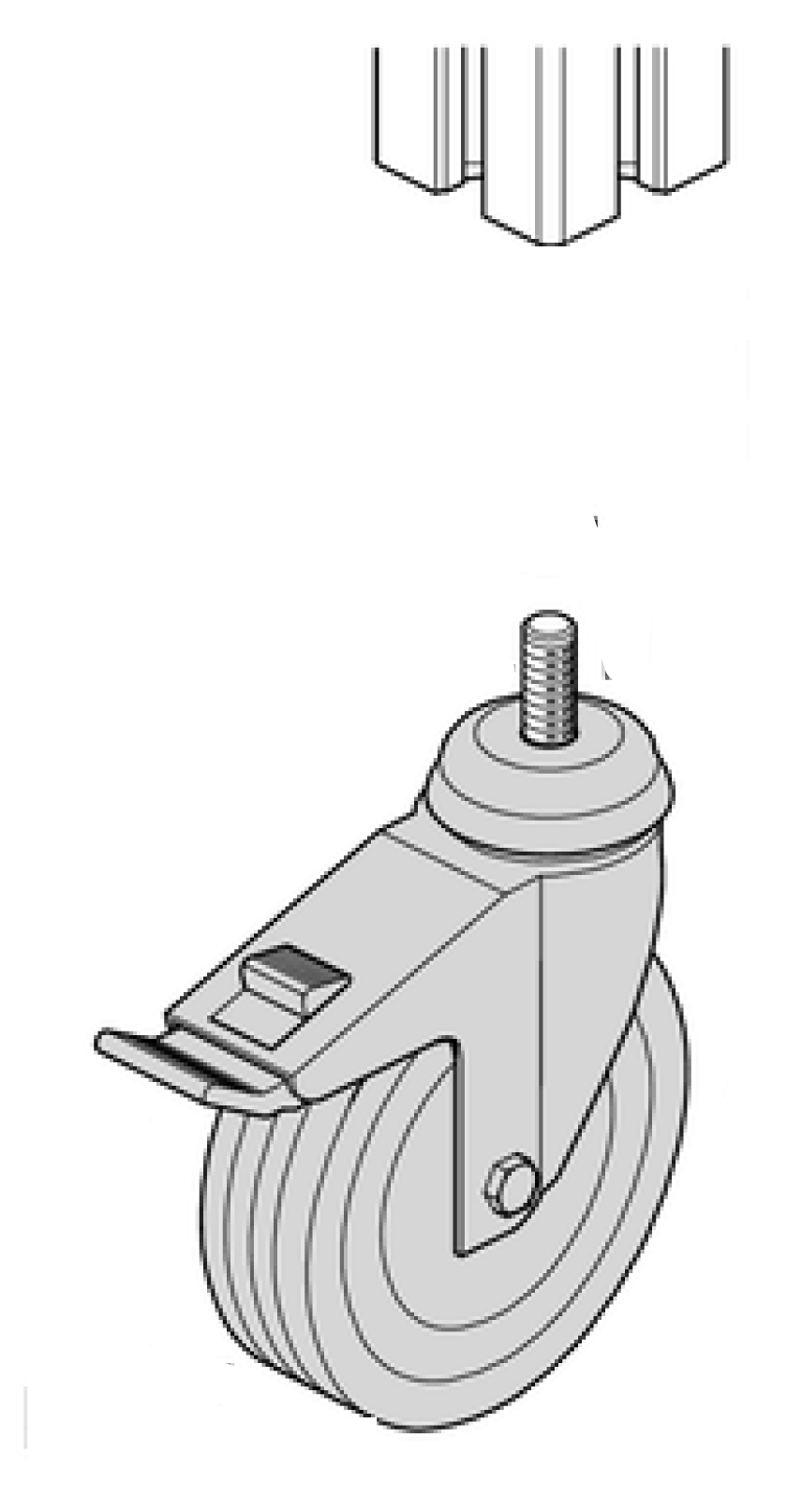

Assembly instruction:
One M12 thread must be cut into the core bore of the profile.
